Power
| Input current |
2 A |
| Input frequency |
50 - 60 Hz |
| Input voltage |
120 - 240 V |
Protocols
| Supported protocols |
ANSI T1.413\nITU G.992.1\nITU G.992.2\nITU G.992.3\nITU G.992.5\nITU G.994.1\nITU G.997.1\nITU G.998.1\nAnnex L\nAnnex M\nPhyR\nG.INP\nITU-T G.993.1\nITU-T G.993.2\nITU-T G.998.2\nANSI T1-424\nETSI TS 101 270-1\nETSI TS 101 270-2\nVLAN |
| Management protocols |
Web/HTTP, TR-069, TR-098, SNMP GETs, SETs, TRAPs, MIB-II, HTTP, FTP, TFTP, TR-069, CLI |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
5 |

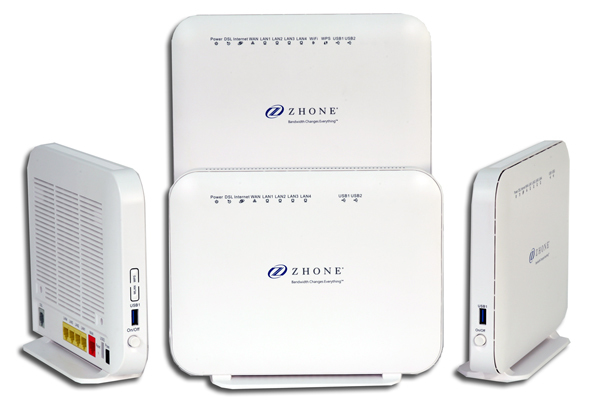

xDSL Bonding 4-Port 802.11b/g/n Gateway, 120 - 240VAC, white
- VDSL2 pair bonding with Profiles 8a/b/c/d or 12 a/b or ADSL2+ Pair Bonding
- Integrated Gig-E Ethernet port for GPON development
- Supports IEEE 802.11b/g/n WiFi with 2-builtin transmitter and receiver antennae
- USB 2.0 Host For DLNA (File and Printer Sharing)
- 3G (WCDMA, CDMA2000, TD-SCDMA) service via USB Dongle
- TR-069 and TR-104
6728-W1 is a most versatile Broadband gateway for service provider that are seeking a single hardware that can support ultra-high bandwidth application using VDSL2 bonding pair technology, Gigabit Ethernet for FTTx or just double the bandwidth for existing ADSL2+ customers.
6728-W1 is one model based on a a family of gateways designed for high-end triple-play-ready residential gateway with advanced router and bridge functions that supports multiple WAN interfaces.
Service Provider can deploy the 67xx series in ADSL2 mode while planning to upgrade the network to VDSL2. Using VDSL2 mode, the 67xx-W1 series can support downstream connection rate at 100mbps and 50mpbs upstream for triple play application.
Subscriber can enjoy always-on internet service even when DSL service is down by connecting a 3G dongle to one of the USB port provided by the 67xx-W1.
ISP can use the same gateway for FTTx deployment by using the Gigabit Ethernet WAN to a GPON device.
Inside the home, the 67xx series plays a central role in interconnecting all networking devices from PC, game consoles to tablet or smart phones to the internet. It provides wireless access to all 802.11 b/g/n devices via a built-in 2x2 MIMO antennae. The built-in DLNA server makes sharing digital multimedia files and USB printer via the USB ports.
