Protocols
| Routing protocols |
IP |
| DHCP server |
Y |
| DHCP client |
Y |
| Management protocols |
Web GUI, ZMS CPE, CLI, SNMP. |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| Foreign eXchange Station (FXS) ports quantity |
2 |
| Compatible slots |
SFP |
Management features
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
Power
| Power over Ethernet (PoE) |
Y |
| Input voltage |
12 V |
Security
| VLAN support |
Y |
| Firewall security |
Y |
Networking
| Ethernet LAN data rates |
1000, 100, 10 Mbit/s |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
SPF, 2 x FXS, 2 x RJ45, USB, VLAN, DHCP, PPPoE, NAT
The zNID supports Gigabit Ethernet termination with full-featured gateway functionality providing an ideal solution for FTTH deployments.
The zNID-GE-422x is designed for outdoor single family deployments providing two voice lines, and two Gigabit Ethernet ports.
Triple Play services - IPTV, POTS or VoIP, and High Speed Internet Access (HSIA) - over existing coax and/or phone line make service offerings and installations flexible and easy.
<b>NO NEW HOME WIRING</b>
The zNID product line integrates two HPNA chipsets to simultaneously support both HPNA over coax and phone line, giving greater flexibility to service providers who want to take advantage of the network already installed in the user's home. The zNID is able to guarantee the best throughput possible over the coax network and the phone line network giving added flexibility when offering triple play services. HPNA over the existing coax and the existing phone line simultaneously virtually eliminates the need to run new cables.
<b>GATEWAY FEATURES</b>
The zNID is a full-featured gateway with integrated DHCP server, ALG's, NAT Router, PPPoE Client, scheduling, comprehensive logging, and more. The zNID product line implements a very flexible QoS allowing the service provider to guarantee that services are being prioritized correctly and the end-user is getting the Quality of Experience that is expected.
<b>ENCLOSURE</b>

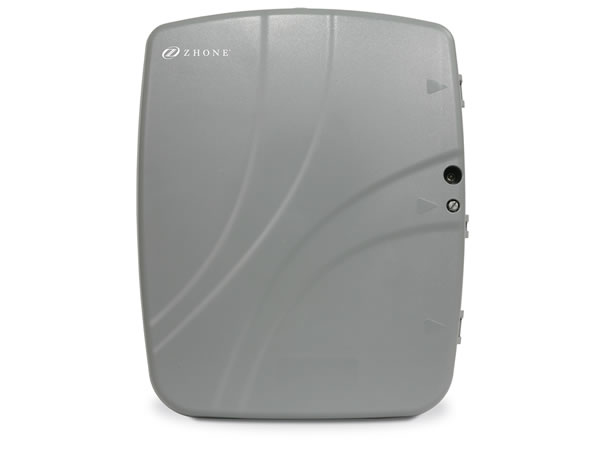

The weather proof enclosure can be installed in two stages for carriers wanting to terminate fiber before installing the active components. A small plastic enclosure can be installed first allowing the installer to terminate the fiber. Later, when the customer has ordered service, the active components are snapped into the fiber enclosure, allowing for a quick and easy installation.
<b>MANAGEMENT</b>
The zNID has intuitive Web and command line interfaces. The zNID is also managed by the Zhone Network Management System (ZMS), using SNMP. Software upgrades and configuration backups can be handled automatically by the ZMS using the CPE Manager feature.
