Technical details
| Heating capacity in watts (max) |
6052 W |
| Ionizer |
N |
| Operating temperature (cooling) (T-T) |
0 - 50 °C |
| Type |

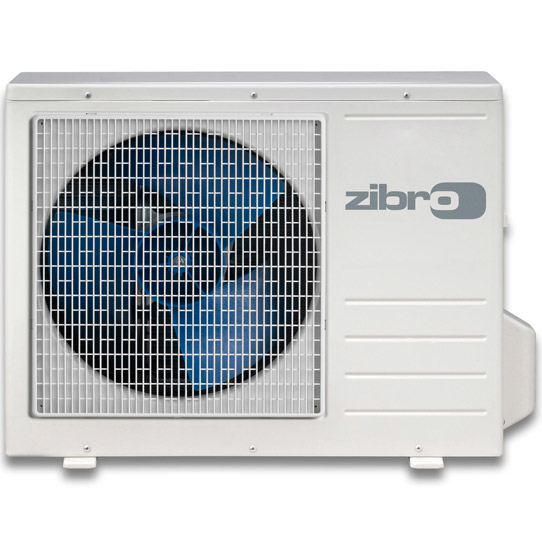

Air conditioner outdoor unit |
| Seasonal efficiency rating (heating) (SCOP) |
3.8 |
| Seasonal efficiency rating (cooling) (SEER) |
5.9 |
| Operating temperature (heating) (T-T) |
-15 - 30 °C |
| Cooling capacity in watts (min) |
1600 W |
| Cooling capacity in watts (max) |
5230 W |
| Heating capacity in watts (min) |
1316 W |
| Refrigerating medium |
R410A |
| Inverter technology |
Y |
Power
| Current |
12.5 A |
| Energy efficiency class (heating) (Warmer heating season) |
A |
| Energy efficiency class (cooling) |
A+ |
Outdoor unit
| Outdoor unit International Protection (IP) code |
IP24 |
| Outdoor unit width |
760 mm |
| Outdoor unit depth |
285 mm |
| Outdoor unit height |
590 mm |
| Outdoor unit weight |
37000 g |
| Noise level (outdoor unit) |
65 dB |
Qlima, R410A, 65dB(A), 37kg
Cooling + dehumidifying + heating (heat pump): The air conditioning is a complete air treatment system. It can cool, dehumidify and heat the air.
Air conditioning: In COOLING mode the unit produces a pleasant and refreshing cool airflow.
Heating: In HEATING mode the unit produces a warm and comfortable airflow. Because also the free of charge energy from the outdoor air is used to increase the efficiency of the system.
Dehumidifying: In DRY mode the unit dehumidifies the air in the room as efficient as possible. Note: In COOLING mode the air is also dehumidified.
Inverter technology: maximum comfort: The Qlima DC Inverter Wall Mounted Split air conditioner continuously adjusts the cooling and heating capacity according the desired room temperature. When the desired temperature is reached, the compressor speed is gradually decreased to maintain the room temperature with a minimum of variation. By varying gradually the compressor capacity, the expected lifetime as well as the experienced comfort level will increase. Looking at the experienced comfort level for the user of the inverter system: Non-inverter air conditioners, which operate at a constant speed, must turn on/off the compressor to control the room temperature causing less comfortable temperature fluctuations.
Inverter technology: minimum energy consumption: The compressor starts to slow down as the room
temperature reaches the desired temperature. As a result, the over all power consumption is reduced significantly (up to 35% less than non inverter/ conventional types).
Easy installation via "spanner Quick Connector System : The air conditioner is provided with a Spanner type Quick connection system which makes it easy to connect indoor unit with outdoor unit, simply pull the lever without the needs for tools. There is no need for additional brazing anymore. From environmental point of view it is required that final installation / putting into operation is done via certified refrigeration (f-gasses) engineer.
Connection via flexible tubes: The air conditioner is provided with Stainless Steel flexible refrigerant gas line and Soft Copper refrigerant liquid line. Due to these flexible lines the installation can be done in the most easiest way without the risk of folding/ cracking.
