Data transmission
| MAC address table |
4000 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100 Mbps |
| Maximum data transfer rate |
0.1 Gbit/s |
Other features
| Connectivity LEDs |
Y |
| Networking features |
Ethernet, Fast Ethernet |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| DC-in jack |
Y |
Networking
| Flow control support |
Y |
| Full duplex |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

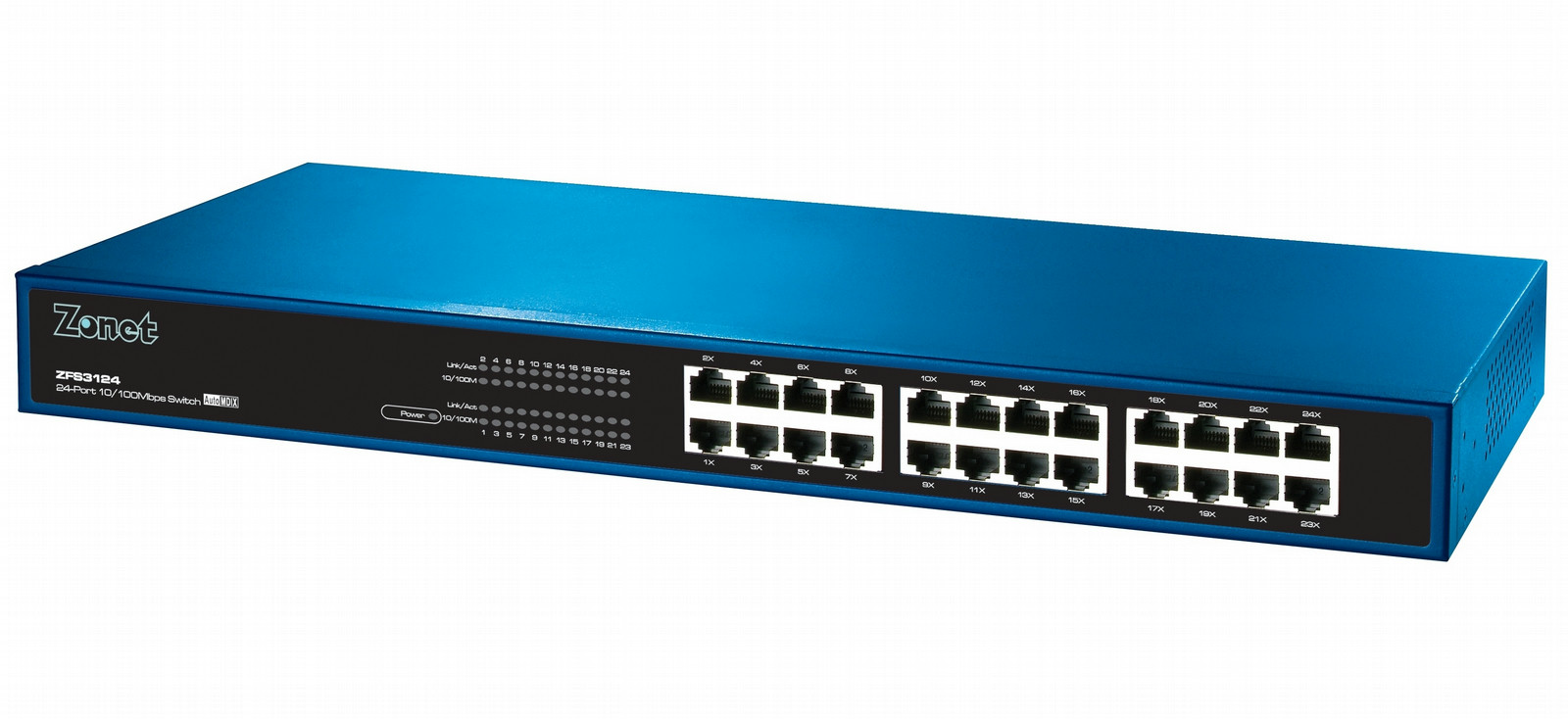

24-Port 10/100Mbps Ethernet Switch
Features:
- 24 10/100Mbps Auto-Negotiation, Auto-MDIX Fast Ethernet RJ-45 ports.
- Full/Half-Duplex capability on each TX port.
- Supports TP interface Auto MDIX function for auto TX/RX swap.
- Automatic Source MAC Address Learning and Aging.
- Supports up to 4096 MAC addresses.
- Up to 6M bits buffer.
- Supports Store & Forward architecture and performs forwarding and filtering.
- Broadcast Storming Filter function.
- IEEE802.3x flow control for Full-duplex.
- Back Pressure function for Half-duplex operation.
- Runt and CRC Filtering eliminates erroneous packets to optimize the network bandwidth.
- Supports to handle up to 1522 bytes packet.
- LED indicators for simple diagnostics and management.
- Supports up to 150m transmission distance.
