Networking
| Supports ISDN connection |
N |
| Routing protocols |
IP, RIP-1, RIP-2 |
Other features
| Modem speed |
24576 Kbit/s |
| Digital signal protocol |
ADSL, ADSL2, ADSL2+ |
| Maximum data transfer rate |
0.024 Gbit/s |
| xDSL connection |
Y |
| Remote administration |
SNMP 1, SNMP 2, HTTP |
| Interface |
USB |
| Supported protocols |
ANSI T1.413 Issue 2, ITU G.dmt (G.992.1)/ITU G.lite (G.992.2)/ITU G.992.3/ADSL Annex L/G.992.5 |
Management features
| Universal Plug and Play (UPnP) |
Y |

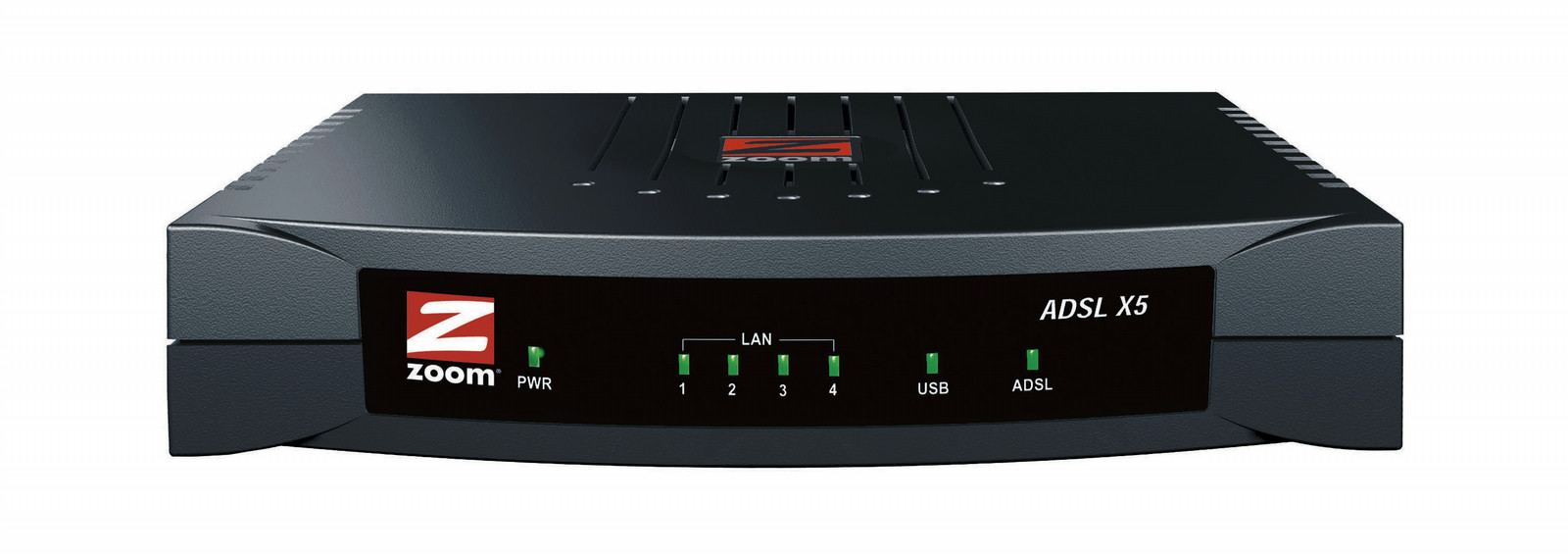

X5 ADSL 2/2+ Modem/Router/Gateway/Firewall
- ADSL 2/2+ for download speeds of up to 24 Mbps
- Full-rate adaptive ADSL Annex A modem
- Built-in router provides shared Internet access for a maximum of 253 concurrent users
- Built-in 10/100 four-port Ethernet switch
- Allows concurrent use of Ethernet and USB ports for Internet sharing
- NAT firewall
- Security features include user authentication, PAP, CHAP, and password-protected system management
- Logs and controls all incoming and outgoing Internet traffic
- Works with most computer operating systems, including Windows, Macintosh, Linux
- Stateful Packet Inspection (SPI)
- SNMP Support
- Auto configuration
- Universal Plug and Play (UPnP)
