Networking
| Supports ISDN connection |
N |
Other features
| LAN features |
RFC 1483/RFC 1577 |
| Downstream data rate |
24 Mbit/s |
| Upstream data rate |
1 Mbit/s |
| Maximum data transfer rate |
0.024 Gbit/s |
| Supported WAN type |
RFC 2364/RFC 2516 |
| ATM features |
ATM Forum UNI 3.1/4.0 PVC, ATM AAL5, OAM F4/F5 |
| xDSL connection |
Y |
| Interface |
IEEE 802.3 |
| Security features |
PPP\nPAP\nCHAP |
| Supported protocols |
ANSI T1.413 Issue 2, G.hs (6.944.1)/ITU G.dmt (G.992.1)/ITU G.lite (G.992.2)/ITU G.992.3/G.992.5 |
Management features
| Universal Plug and Play (UPnP) |
Y |
DSL features
| DSL specification |
ANSI T1.413 Issue 2, G.hs (6.944.1)/ITU G.dmt (G.992.1)/ITU G.lite (G.992.2)/Annex A/G.dmt.bis (ITU G.992.3)/ADSL Annex L/G.992.5 |
| ADSL |
Y |

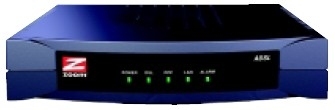

5660 X3 ETHERNET ADSL 2/2+ Modem
Key features
- Faster ADSL speeds and extended distances at which high-speed data can be delivered
- Works with all popular ADSL services
- Fast and easy installation with auto configuration
- Built-in router provides shared Internet access for up to 253 concurrent users
- NAT firewall
- Advanced security includes Stateful Packet Inspection and Network Address translation firewalls
- Works great with wireless access points
- Supports Simple Network Management Protocol (SNMP)
- Works with computers running Windows 95, 98, 98SE, 2000, XP and Me as well as Linux, Unix and Mac Operating Systems
