Networking
| MAC address table |
128 entries |
| Supported WAN type |
PPP over ATM (RFC 2364), PPP over Ethernet (RFC 2516) |
| ATM features |
RFC 1483, UNI 3.1/4.0 PVC, ATM AAL5, OAM F4/F5 |
Security
| Firewall security |
SPI, DoS |
| Authentication method |
PAP, CHAP |
| VPN support |
PPTP, L2TP, IPsec |
| MAC address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Other features
| Connectivity LEDs |
Y |
| Power LED |
Y |
| Networking features |
Fast Ethernet |
DSL features
| Downstream data rate |
24 Mbit/s |
| Upstream data rate |
3 Mbit/s |
| DSL specification |
ADSL (ANSI T1.413, ITU G.dmt (G.992.1)), ADSL 2 (G.dmt.bis (ITU G.992.3)), ADSL 2+ (G.992.5) |
| xDSL connection type |
ADSL |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |
| Filtering |
IP/Port, URL |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

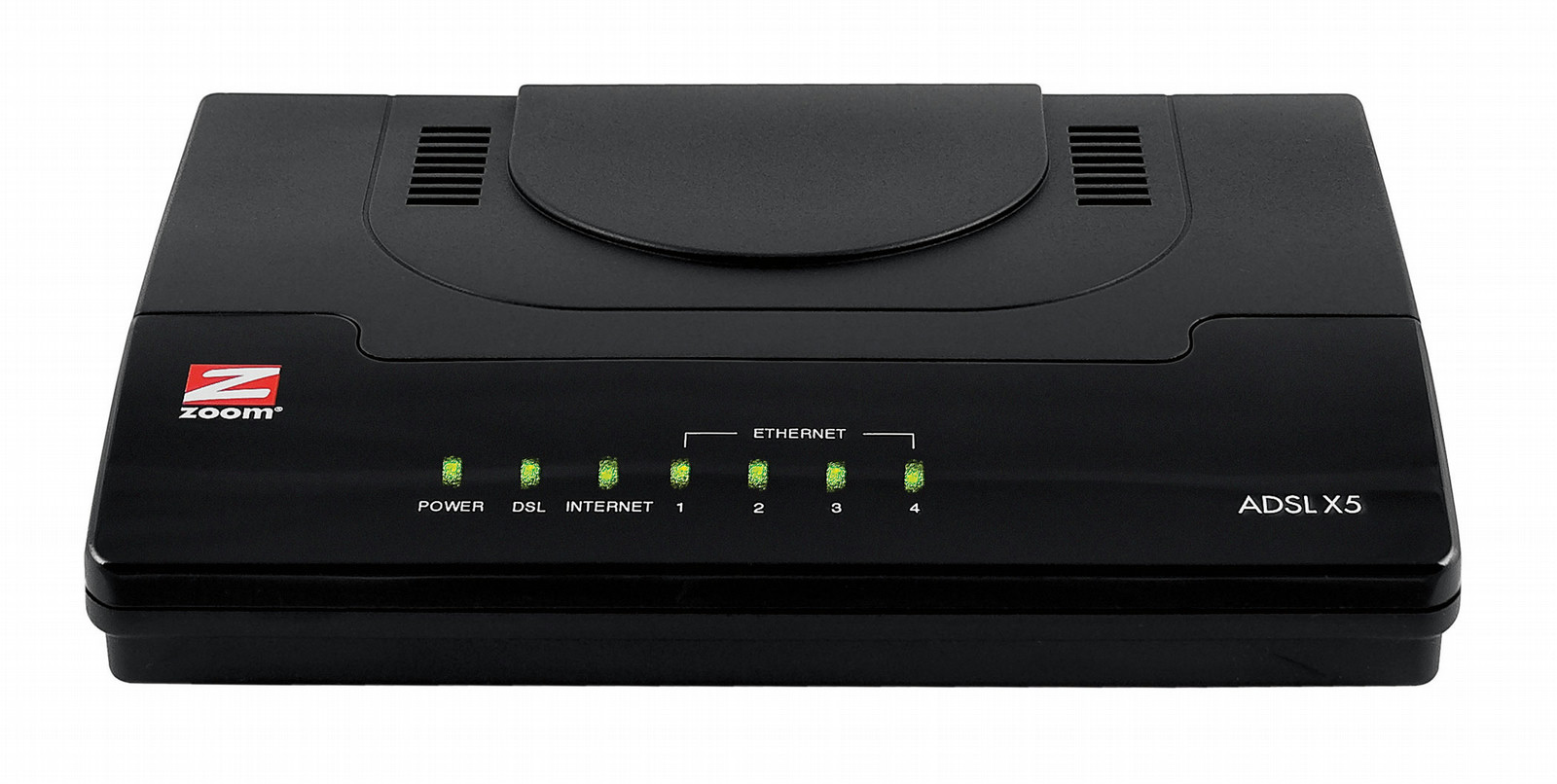

ADSL X5 5754 ADSL Modem/Router with 4-port Switch
This versatile product provides a shared ADSL Internet connection for up to 4 directly connected computers or for a network of up to 253 computers and other devices. Plug the X5’s phone cord into a phone line with ADSL service. Then use its 4 Ethernet LAN ports to plug in computers, Ethernet switches, wireless access points, HomePlug adapters, or other devices. Setup is easy using any Web browser. The X5 supports all popular ADSL protocols, and delivers download speeds up to 24 Mbps. Best of all, the X5 is produced and supported by Zoom Telephonics, a communication products leader since 1977.
If you choose to use the X5’s router features, you’ll enjoy its flexibility, friendly user interface, and extensive features. The router features are useful for all the devices plugged directly into the X5 or linked to the X5 through a switching hub, wireless access point, HomePlug, or other network connection. Extensive X5 router features include an SPI/NAT firewall, Denial of Service attack protection, IP filtering, Virtual Server, DMZ, LAN and WAN access control, on line gaming support, extensive debugging and diagnostic tools, and much more. The friendly X5 graphical user inter face makes it easy for you to use your favorite browser to set any router feature you like, even from remote locations.
