Networking
Supports ISDN connection |
N |
VoIP protocols |
RFC 1577 |
Other features
Downstream data rate |
24 Mbit/s |
Upstream data rate |
1 Mbit/s |
Maximum data transfer rate |
1 Gbit/s |
Management platform |
TR-069 |
ATM features |
UNI 3.1/4.0 PVC, OAM F4/F5, ATM AAL5 |
xDSL connection |
Y |
Remote administration |
SNMP 1, 2 |
Interface |
IEEE 802.3 |
Data transfer rate |
125 Mbit/s |
Frequency range |
2.484 GHz |
Management features
Universal Plug and Play (UPnP) |
Y |
Quality of Service (QoS) support |
Y |
Protocols
DHCP client |
Y |
DHCP server |
Y |
Supported network protocols |
RFC 1483 |
Additionally
Ethernet LAN (RJ-45) ports quantity |
4 |

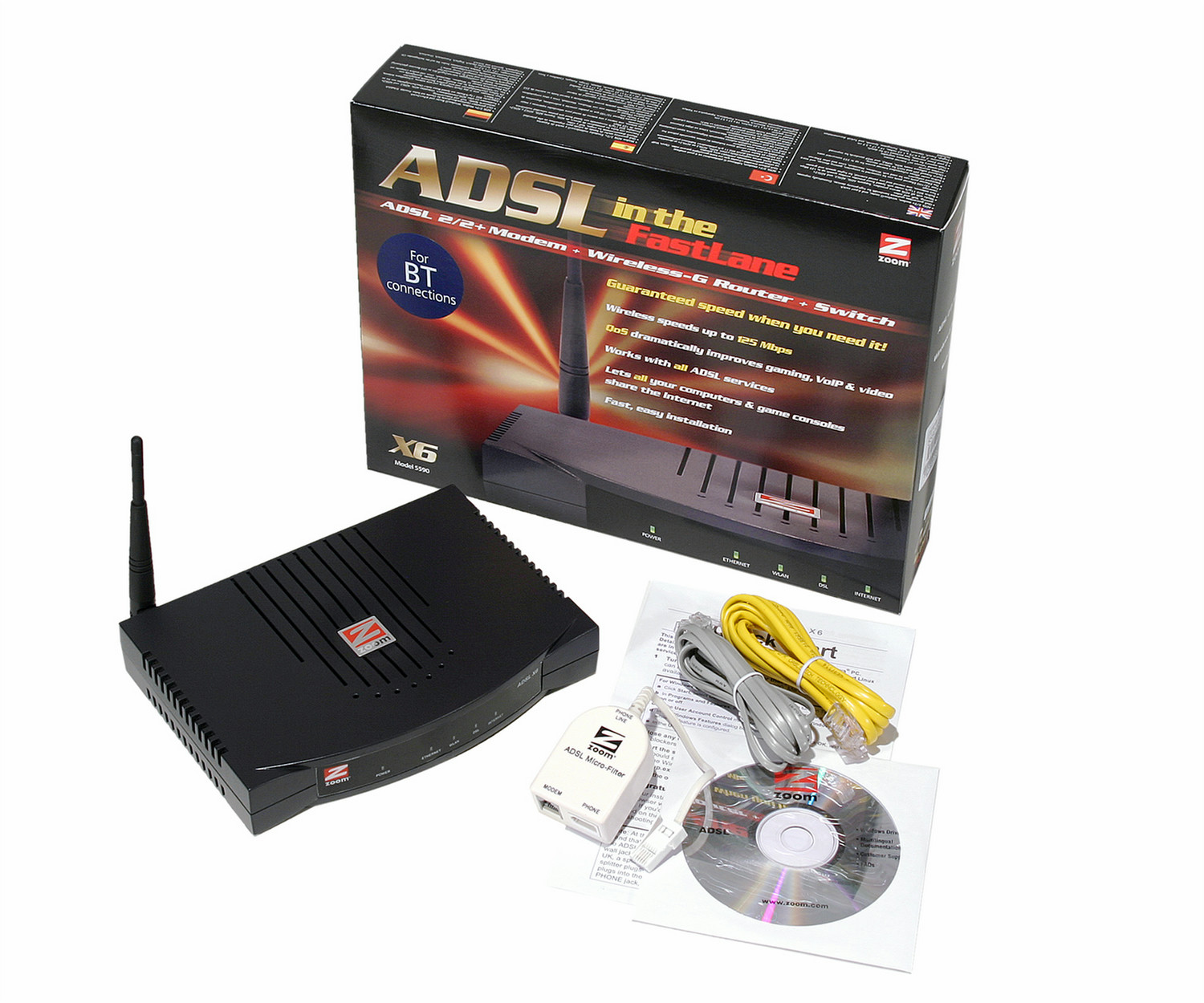

ADSL X6 Wireless 125 Modem/Router with QoS (Quality of Service), TR69 and Annex M Firmware
The Model 5590 provides an extensive range of networking and Internet access features in a surprisingly affordable product. Advanced security features protect sensitive data in the home or office. Setup and management are extraordinarily easy, and wireless connections are made
with superior range and speed. Both ADSL and ADSL 2/2+ protocols are supported and automatically negotiated to ensure easy installation and a long useful life for the product.
An Installation Wizard makes setup a snap, with an auto configuration option that will automatically configure the DSL settings used by your service provider. Universal Plug and Play (UPnP) provides easy Local Area Networking configuration and operation The Model 5590 makes it easy to provide multiple levels of guaranteed upstream bandwidth for
prioritized devices. One or more physical ports on the X6 is designated as the source for prioritized traffic. A gaming adapter, Voice over IP telephone adapter or other device plugged into those ports is then provided with the guaranteed upstream bandwidth selected by the user.
The 802.11g wireless access point provides flexible networking with freedom to roam. With Zoom 125 Speed Booster, wireless data rates can reach 125 Mbps*. The Model 5590 is also completely compatible with 802.11g from other manufacturers operating at 54 Mbps. Unlike
other wireless access points, the Model 5590 can support concurrent connections to both 802.11(b) and (g) devices without compromising the data rate of the higher speed devices.
Wireless security meets Wi-Fi Protected Access (WPA and WPA2) standards as well as Wired Equivalency Protection (WEP). Other advanced wireless features include Wireless Distribution System (WDS) to support wireless repeaters/range extenders, and Wireless Multimedia Extensions (WME) to provide Quality of Service (QoS) for Voice over IP and other applications.
Per-port PVC (Private Virtual Channel) is supported with multiple channels and downstream ATM QoS to allow delivery of multimedia services by Internet Service Providers.
Zoom ADSL gateways are backed by a two year warranty and over 30 years of experience in the design and support of communications products.
Annex M firmware is available for evaluation by ISPs as a special order unit.
