Performance
| Motherboard form factor |
Mini ITX |
| Motherboard chipset family |
Intel |
| Audio system |
HD |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1333 MHz |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
Processor
| Maximum number of SMP processors |
1 |
| Processor system buses supported |
1333 MHz |
Internal I/O
| S/PDIF out connector |
Y |
| Number of SATA connectors |
5 |
| ATX Power connector (24-pin) |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
Networking
| Wake-on-LAN ready |
Y |
| Networking features |
Gigabit Ethernet, 802.11b/g/n |
Expansion slots
| Mini PCI Express slots |
1 |
| PCI Express x16 slots |
1 |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Back panel I/O ports
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| HDMI ports quantity |
1 |
Packaging content
| Quick installation guide |
Y |
Additionally
| Graphics |
GMA X4500 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

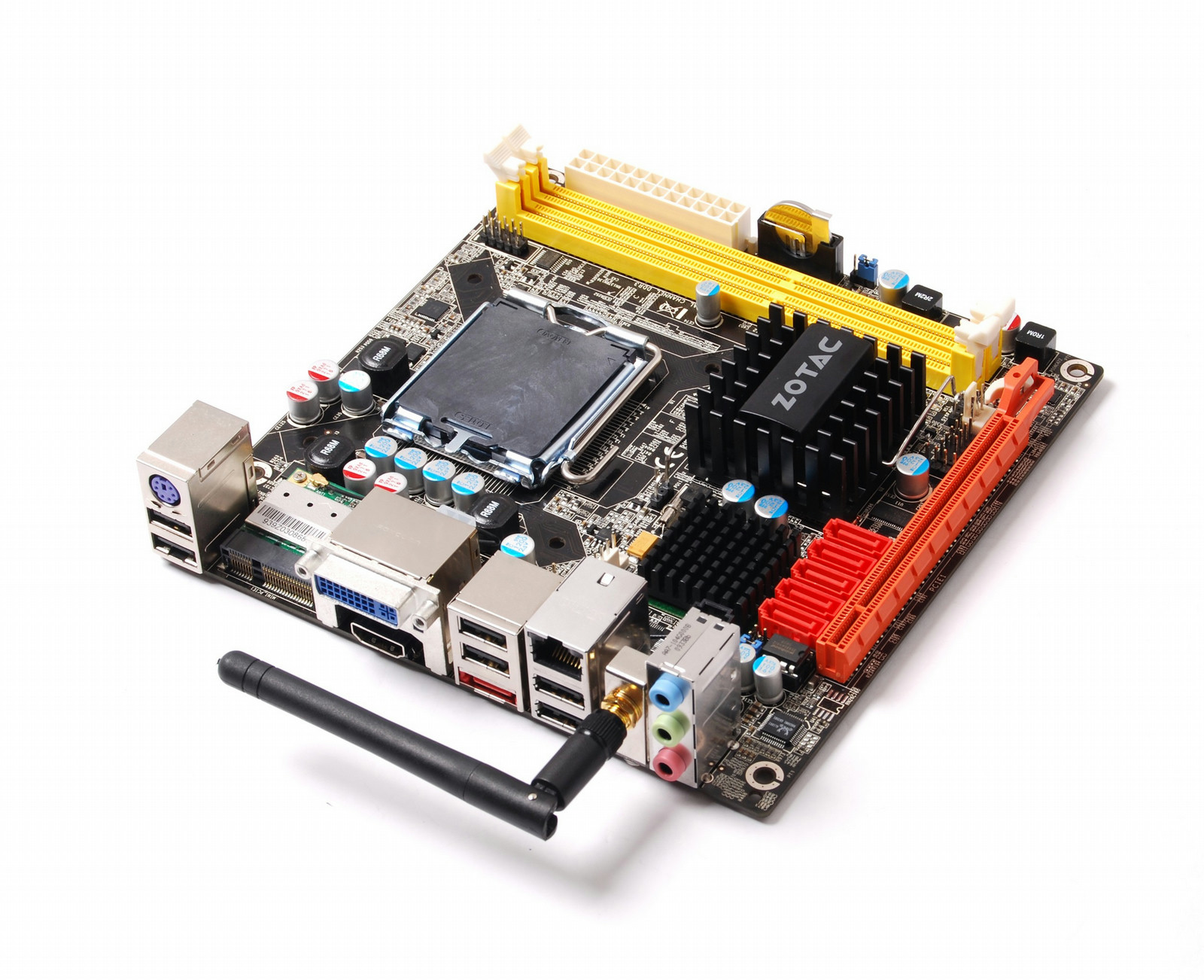

Intel G45 Express, LGA775, 2 x 240 pin DDR3 DIMM, Gigabit Ethernet, 802.11b/g/n, 6 x USB 2.0, DVI, HDMI, mini-ITX
G45ITX-B-E
Experience high-performance and rock solid stability in a small with the ZOTAC G45-ITX platform powered by the Intel® G45 Express chipset. The ZOTAC G45-ITX platform is designed to accept high-performance Intel® Core™ 2, Celeron® and Pentium® processors while occupying a miniscule amount of space thanks to the Mini-ITX.
Just because the ZOTAC G45-ITX is a Mini-ITX platform doesn’t mean it has limited expansion. Packing
one eSATA 3.0 Gbp/s and five SATA 3.0 Gbp/s ports with RAID 0, 1, 5 and 10 support, full-speed PCI Express x16 and mini PCI Express slots, and Gigabit LAN, the ZOTAC G45-ITX is proof you can have big system performance and expansion in a Mini-ITX.
