Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Audio system |
HD |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Processor
| Maximum number of SMP processors |
1 |
Internal I/O
| USB 2.0 connectors |
4 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| Number of SATA II connectors |
3 |
| CPU fan connector |
Y |
| Front panel audio connector |
Y |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
| HDCP |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Additionally
| Chipset |
Intel H61 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

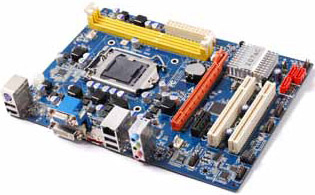

H61MAT-A-E, Intel H61, LGA 1155, DDR3, SATA II, USB 2.0 , PCI-E, PCI, Intel HD Graphics, Gigabit Ethernet, micro ATX
Embrace the compact micro-ATX form factor and high-performance 2nd Generation Intel Core i3, i5 and i7 processors with the ZOTAC H61 platform. Compatibility with 2nd Generation Intel Core family processors with HD Graphics enables the ZOTAC H61 platform to function as an affordable highperformance platform when paired with 2nd Generation Intel Core family processors with HD graphics or a supercharged gaming system when combined with a ZOTAC GeForce series graphics card.
The ZOTAC H61 is the ultimate micro-ATX solution for your compact computing needs. Expansion with the ZOTAC H61 is plentiful with two DDR3 DIMM, PCI Express x16, PCI Express x1 and two PCI slots, one eSATA and three SATA 3.0Gb/s ports and four USB 2.0 ports while high-definition 6-channel audio outputs and Gigabit Ethernet round out the overall package.
