Performance
| Motherboard form factor |
Mini ITX |
| Motherboard chipset family |
Intel |
| Intel Remote Wake technology |
Y |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Internal I/O
| USB 2.0 connectors |
4 |
| USB 3.0 (3.1 Gen 1) connectors |
2 |
Graphics
| DirectX version |
10.1 |
| OpenGL version |
2.1 |
| Graphics adapter family |
Intel |
| HDCP |
Y |
Networking
| Wake-on-LAN ready |
Y |
| Wi-Fi |
Y |
| Networking features |
10/100/1000 Mbps |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express configurations |
1x16 |
Additionally
| Chipset |
Intel H67 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Intel Core (i3, i5, i7), HD Graphics 2000/3000, DDR3 (2 x 240-pin DIMM) 1066/1333 MHz, 10/100/1000Mbps, 8x USB 2.0, 4x USB 3.0, mini-ITX

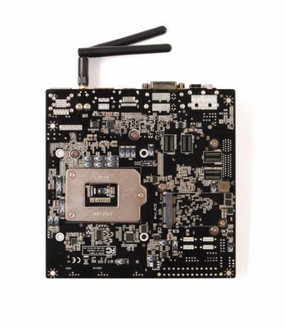

Assemble the perfect small form factor system for all your computing demands with the flexible ZOTAC® H67-ITX WiFi mini-ITX platform. The ZOTAC® H67-ITX WiFi supports socket LGA1155 2nd generation Intel® Core™ family processors with turbocharged Intel® HD Graphics to let users select the perfect amount of processing power for their needs – whether it is dual or quad-core, with or without Intel® HyperThreading™ technology.
Demanding gamers can install a standard PCI Express x16 ZOTAC® graphics card in the H67-ITX WiFi to form a perfect miniature gaming PC that delivers big system power in a miniature form factor. A mix of seven total SATA 6.0 Gb/s, SATA 3.0 Gb/s and eSATA ports with RAID 0, 1, 5 and 10 support on the ZOTAC® H67-ITX WiFi enable users to maximize storage connectivity and complete the ultimate home theatre PC or home file server.
