Performance
| Motherboard form factor |
Mini ITX |
| Motherboard chipset family |
Intel |
| Audio system |
HDA |
| Component for |
Nettop |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
1600 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Processor
| Maximum number of SMP processors |
1 |
Internal I/O
| mSATA ports quantity |
1 |
| USB 2.0 connectors |
4 |
| USB 3.0 (3.1 Gen 1) connectors |
2 |
| Number of SATA III connectors |
2 |
| Number of SATA II connectors |
2 |
Expansion slots
| Mini PCI Express slots |
1 |
| PCI Express x16 slots |
1 |
Networking
| Bluetooth version |
3.0 |
| Wi-Fi |
Y |
| Bluetooth |
Y |
Back panel I/O ports
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| DVI-I ports quantity |
1 |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
Additionally
| Chipset |
Intel H77 |
| Количество слотов PCI Express |
2 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

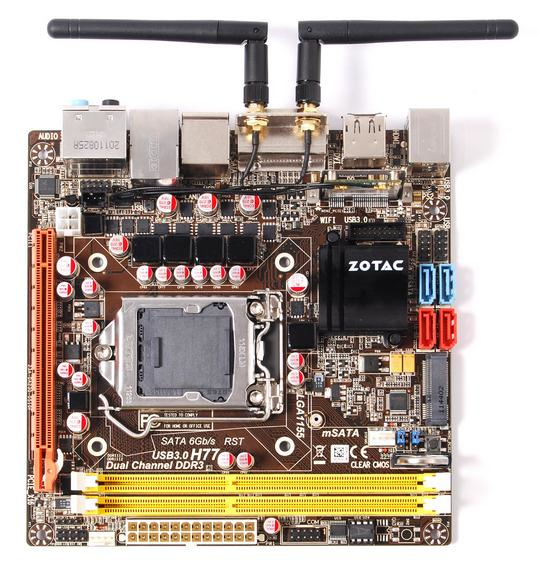

Intel H77 Express, LGA1155 Socket, 2x DIMM DDR3-1600, SATA2/3, eSATA, RAID, Mini-ITX
Experience unprecedented performance from a small form factor system with the Intel® 7-series powered ZOTAC mainboard -- the ultimate mini-ITX solution for gamers and enthusiasts. The Intel® 7-series powered ZOTAC mainboard embraces 3rd Generation Intel(R) Core(tm) family processors for unmatched performance, outstanding energy efficiency and high-definition capable graphics processing.
A PCI Express 3.0 x16 expansion slot is available on the Intel® 7-series powered ZOTAC mainboard for gamers that desire running the latest discrete ZOTAC graphics cards for life like visuals and out of this world 3D performance. Storage expansion capabilities are plentiful on the Intel® 7-series powered ZOTAC mainboard with SATA 6.0 Gb/s, SATA 3.0 Gb/s and mSATA ports internally while USB 3.0 and USB 2.0 are available for external expansion.
