Performance
| Motherboard form factor |
Mini ITX |
| Motherboard chipset family |
Intel |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1600 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Internal I/O
| mSATA ports quantity |
1 |
| USB 2.0 connectors |
4 |
| S/PDIF out connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
4 |
| Number of SATA III connectors |
2 |
| Number of SATA II connectors |
2 |
Graphics
| Maximum graphics adapter memory |
512 MB |
| Graphics adapter family |
NVIDIA |
Expansion slots
| Mini PCI Express slots |
1 |
| PCI Express x4 slots |
1 |
Networking
| Bluetooth version |
4.0 |
| Wi-Fi |
Y |
| Bluetooth |
Y |
Back panel I/O ports
| eSATA ports quantity |
1 |
| DVI-I ports quantity |
2 |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
Additionally
| Chipset |
Intel H77 |
| Graphics |
GeForce GT 620 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Mini-ITX, Intel H77 Express, Socket LGA 1155, 2 x 240-pin SO-DIMM, RAID, NVIDIA GeForce GT 620 512MB, Gigabit Ethernet, Wi-Fi, Bluetooth 4.0, 2 x DVI-I/HDMI/DisplayPort

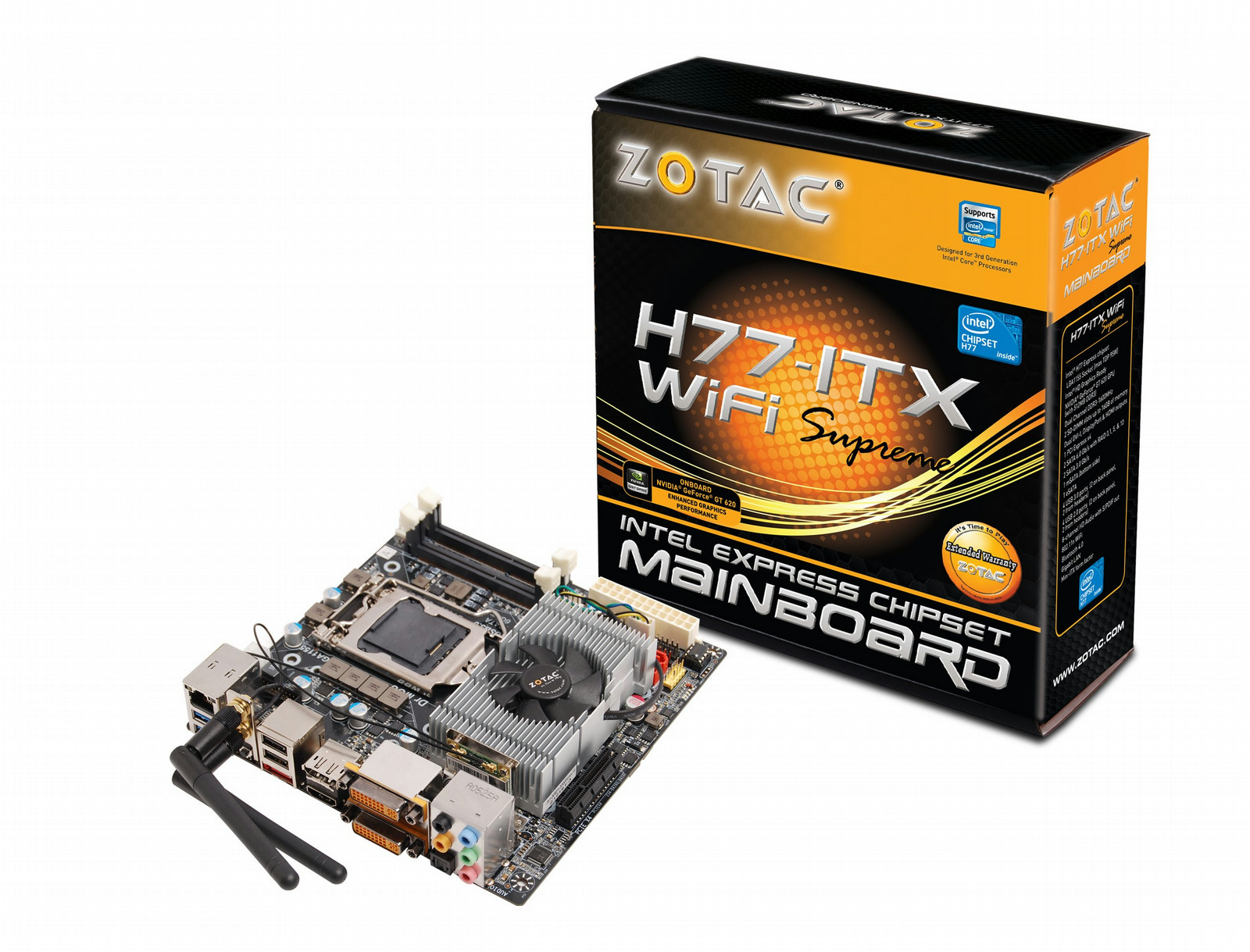

Assemble the perfect small form factor system for all your computing demands with the flexible ZOTAC H77-ITX WiFi Supreme mini-ITX platform. The ZOTAC H77-ITX WiFi Supreme supports socket LGA1155 Intel Core family processors and incorporates a discrete NVIDIA GeForce GT 620 graphics processor to boost 3D performance, enable NVIDIA CUDA technology and drive two additional simultaneous independent displays.
The ZOTAC H77-ITX WiFi Supreme packs unprecedented expansion capabilities with available one PCI Express x4 slot, one mini-PCI Express and mSATA slot. A mix of 5 total SATA 6.0 Gb/s, SATA 3.0 Gb/s and eSATA ports with RAID 0, 1, and 5 support on the ZOTAC H77-ITX WiFi Supreme enable users to maximize storage connectivity and complete the ultimate home theatre PC or home file server.
