Graphics
| Graphics adapter memory type |
GDDR3 |
| Maximum graphics adapter memory |
512 MB |
| Graphics adapter family |
NVIDIA |
Memory
| Supported memory clock speeds |
800 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
Other features
| Hard drive size |
2.5 " |
| Number of processors installed |
1 |
| Power LED |
Y |
Motherboard
| Supported processor frequency (max) |
1.8 GHz |
Ports & interfaces
| DVI port |
N |
| Combo headphone/mic port |
N |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
Processor
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| L2 cache |
1 MB |
| Processor cores |
2 |
| Processor frequency |
1.8 GHz |
Processor special features
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel 64 |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
Storage
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD |
| Optical drive type |
N |
| Card reader integrated |
Y |
Networking
| Wi-Fi |
Y |
| Networking features |
Gigabit Ethernet |
Additionally
| Chipset |
Intel NM10 |
| Graphics |
ION |
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Intel AES New Instructions |
N |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

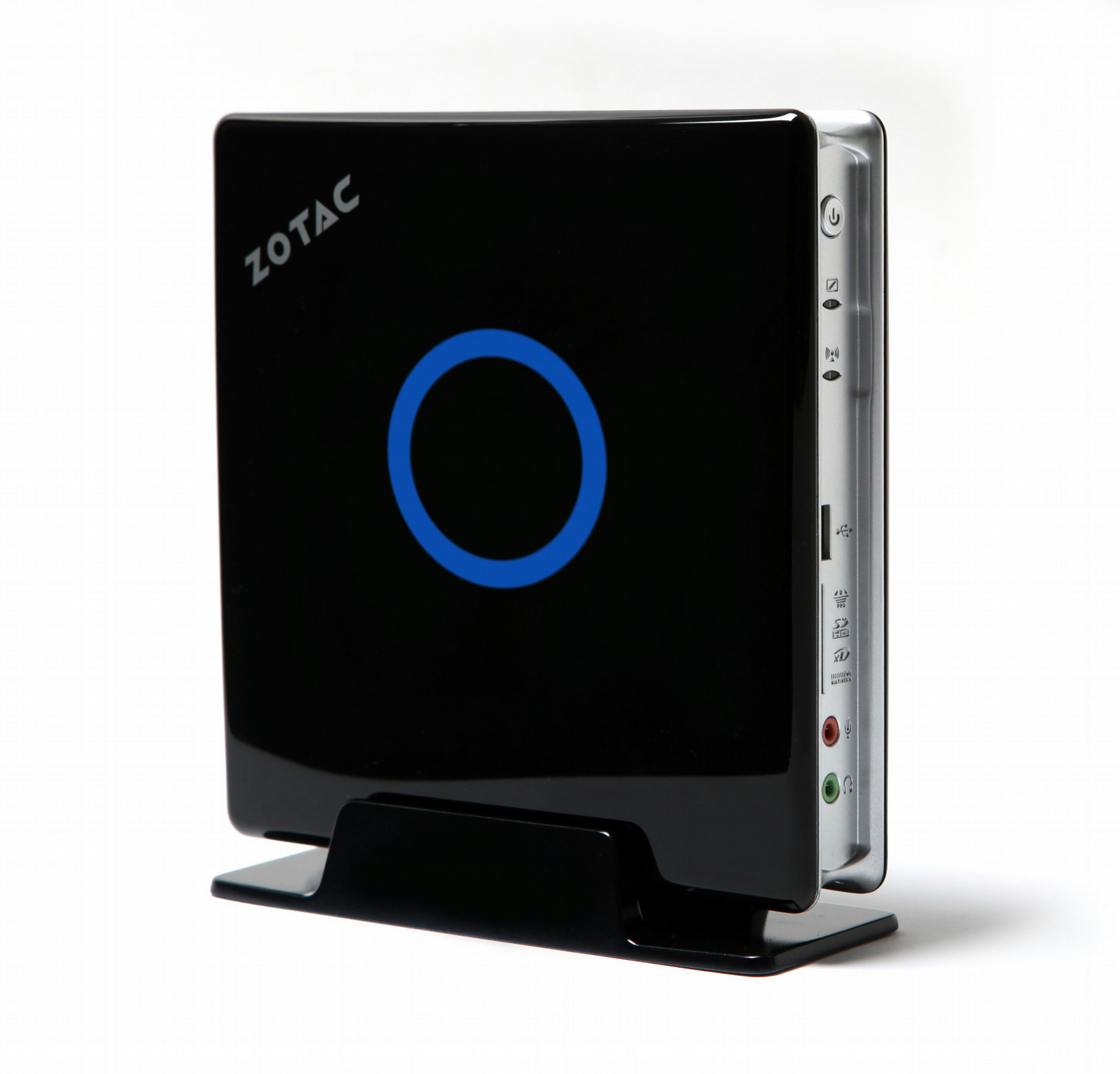

ID41 - Intel Atom D525 (1.8 GHz), DDR3 800MHz, 802.11n/g/b (300Mbps), ION 512MB, Black/Silver
Enjoy eco-friendly computing with superior energy-efficiency and performance with the ZOTAC ZBOX ID41 mini-PC powered by the class-leading Next-Generation NVIDIA® ION™ and Intel® Atom™ architectures. Next-Generation NVIDIA® ION™ graphics deliver unrivaled levels of performance and high definition video decode capabilities to the ZOTAC ZBOX ID41 mini-PC with NVIDIA® CUDA™, PureVideo™ HD and HDMI 1.3a technologies for eco-friendly computing with premium audio and video capabilities.
High performance eco-friendly computing is only two thumb screws away with the ZOTAC ZBOX ID41 mini-PC thanks to a user friendly design that makes mastering the mini-PC quick and easy. Space for a 2.5-inch hard drive and 2 204-pin DDR3-800 DIMM slot enables users to customize the internals of the ZOTAC ZBOX ID40 to their own needs while USB 3.0 and USB 2.0 ports, a 6-in-1 memory card reader (SD/SDHC/MS/MS Pro/xD/MMC) and eSATA port provide greater external expansion capabilities for perfect eco-friendly computing.
