Performance
| Motherboard form factor |
Mini ITX |
| Motherboard chipset family |
Intel |
Memory
| Supported memory clock speeds |
677, 800 MHz |
| Supported memory types |
DDR2-SDRAM |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
Back panel I/O ports
| Serial ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| Digital audio optical out |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Processor
| Maximum number of SMP processors |
1 |
| Processor system buses supported |
533 MHz |
Internal I/O
| USB 2.0 connectors |
6 |
| Number of SATA II connectors |
3 |
Expansion slots
| Mini PCI Express slots |
1 |
| PCI Express x16 (Gen 2.x) slots |
1 |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
NVIDIA |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

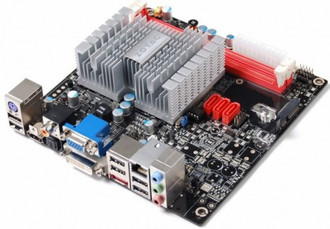

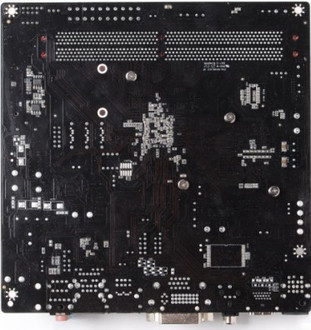

IONITX-B-E, ION, DDR2 800/667MHz, Intel Atom N230, PCI-E
Experience fluid and vivid high-definition video playback with the ultra-compact ZOTAC ION™ motherboard . The mini-ITX form factor ZOTAC ION™ motherboards combine a high-performance NVIDIA® ION™ graphics processor with a power-efficient Intel® Atom™ processor for the ultimate eco-friendly platform that has no troubles handling regular web browsing, e-mail, productivity and HD video playback tasks.
NVIDIA® PureVideo™ HD technology harnesses the power of the NVIDIA® ION™ GPU’s 16 high-speed stream processors for high-definition Blu-ray playback capabilities. PureVideo™ HD technology decodes HD video formats and enhances standard-definition videos with the NVIDIA® ION™ GPU for flawless HD and superior SD video playback.
zotac-nvidia-sli
NVIDIA PureVideo technology enables smooth DVD video playback with vivid colors and superior picture quality. With PureVideo technology, movies are displayed with stunning quality while keeping CPU utilization to a minimum."
