Performance
| Motherboard form factor |
Mini ITX |
Back panel I/O ports
| Serial ports quantity |
1 |
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
3 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Internal I/O
| USB 2.0 connectors |
4 |
| Number of SATA connectors |
2 |
| Number of Parallel ATA connectors |
1 |
Memory
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
Networking
| Networking features |
Fast Ethernet |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

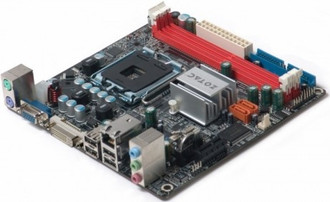

nForce 630i-ITX, GeForce 7100/nForce 630i, DDR2 800MHz, PCI-E
Experience high-performance and quiet computing with the ZOTAC nForce 630i-ITX platform. The ZOTAC nForce 630i-ITX delivers compatibility with a broad range of single, dual and quad-core Intel Core 2 processors in a miniscule mini-ITX form factor, allowing you to build a high-performance system that occupies a very small footprint. Support for DDR2-800 memory ensures the ZOTAC nForce 630i-ITX delivers optimal system performance in today’s software and applications.
The ZOTAC nForce 630i-ITX also packs the powerful NVIDIA’s GeForce 7100 graphics processor for DirectX 9 with Shader Model 3.0 compatibility for brilliant visuals and Windows Vista Premium with aero glass user interface compatibility. The NVIDIA GeForce 7100 graphics processor delivers DVI and VGA outputs with NVIDIA nView multi-display technology allowing you to connect two displays for maximum productivity.
