Performance
| Motherboard form factor |
Mini DTX |
Back panel I/O ports
| Serial ports quantity |
1 |
| S/PDIF in port |
Y |
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Firewire (IEEE 1394) ports |
1 |
| Microphone in |
Y |
| eSATA ports quantity |
6 |
| Digital audio optical out |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Controller interface type |
SATA |
| Special features |
NM10-DTX WiFi:\n- Intel Atom D510 (dual-core)\n- 1.66 GHz;\n- Intel HyperThreading;\nION Graphics Card:\n- 589 MHz;\n- 512MB DDR3;\n- 790 MHz;\n- NVIDIA CUDA;\n- NVIDIA PureVideo HD;\n- Microsoft DirectX 10.1;\n- Microsoft DirectCompute;\n- OpenCL;\n- Onboard 802.11n WiFi |
Graphics
| Maximum graphics adapter memory |
512 MB |
| On-board graphics adapter |
Y |
| HDCP |
Y |
Expansion slots
| Mini PCI Express slots |
1 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Memory
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
Networking
| Networking features |
Ethernet, Fast Ethernet, Gigabit Ethernet |
Additionally
| Graphics |
ION |
| Dual-link DVI |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

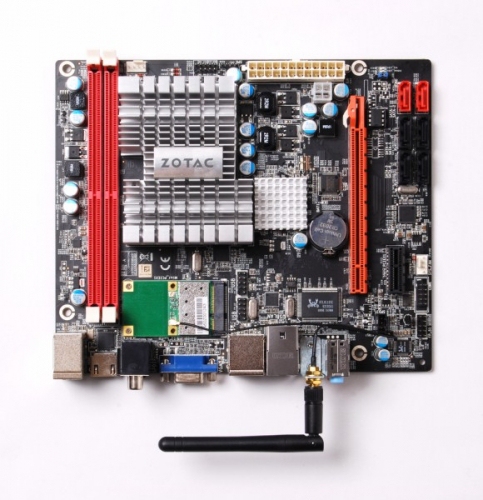

NM10-B-E-ION (Combo Type) - Motherboard: mini-DTX, PCI Express x1, Intel® NM10 Express Chipset, 10x USB 2.0, 6x SATA, 2x 240 pin DDR2 667/800MHz, Gigabit Ethernet; CPU: Intel® Atom™ D510 (dual-core), 1.66GHz, Zero-noise passive cooling; VGA: NVIDIA® ION™, Engine Clock 589MHz, Shader Clock 1402MHz, 512MB DDR3, Memory Clock 790MHz
Energize your computing experience with the ZOTAC ION™ Upgrade Kit featuring a ZOTAC small form factor motherboard and ION™ graphics card for computing that goes beyond simple web browsing. Combining a ZOTAC small form factor motherboard and ION™ graphics card enables users to take advantage of the CPU for general system usage while the high-performance ION™ graphics processor is available for premium tasks such as high definition video playback, OpenCL, DirectCompute and NVIDIA® CUDA™ powered applications.
Hardware decode acceleration of high-definition video formats such as H.264, VC-1, WMV, DivX®, MPEG-2 and MPEG-4 for ultra-smooth video playback of your favorite Blu-ray titles and movie files while Adobe® Flash® Player 10.1 video acceleration enables flawless playback of streaming high definition Internet video from sites such as YouTube™, Vimeo™, Hulu™ and more with the ZOTAC ION™ Upgrade Kit. NVIDIA® CUDA™, OpenCL and DirectCompute compatibility enables the ZOTAC ION™ Upgrade Kit to accelerate everyday tasks with the ION™ graphics processor – including video and image editing – for performance that rivals higher end systems while delivering a greater value.
