Performance
| Motherboard form factor |
Mini DTX |
| Audio system |
HDA |
Memory
| Supported memory clock speeds |
800 MHz |
| Supported memory module capacities |
1GB, 256MB, 2GB, 512MB |
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |

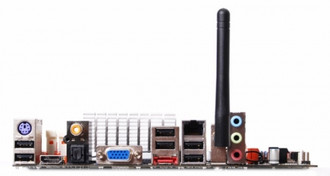

Back panel I/O ports
| Serial ports quantity |
1 |
| WiFi-AP antenna jack |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Graphics controller |
Intel 3150 |
Internal I/O
| USB 2.0 connectors |
4 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
6 |
Expansion slots
| Mini PCI Express slots |
1 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Processor
| Processor system buses supported |
800 MHz |
Networking
| Networking features |
Gigabit Ethernet, WiFi |
Additionally
| Graphics |
GMA 3100 |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Intel NM10, Intel Atom D525 (1M Cache, 1.80 GHz), Intel GMA 3150, 2x 240-pin DDR2 DIMM, eSATA/SATA, PCI-E, mini PCI-E, Gigabit Ethernet, 802.11b/g/n, Mini-DTX
Experience energy-efficient computing in a miniature form factor with the ZOTAC NM10-DTX WiFi mini-DTX platform. The ZOTAC NM10-DTX WiFi platform delivers plenty of performance for everyday tasks such as web browsing and e-mail while consuming minimal amounts of energy for true eco-friendly computing that’s smart and sensible.
The ZOTAC NM10-DTX WiFi packs everything you need into a mini-DTX form factor including an Intel® Atom processor and Intel® NM10 Express chipset – a combination that delivers class-leading energy-efficiency and performance. From the Microsoft® DirectX® 9 and OpenGL® 1.5 compatible Intel® Graphics Media Accelerator 3150 graphics processor to the PCI Express x1 and PCI Express x16 (single-lane) expansion slots, the ZOTAC NM10-DTX WiFi is the best choice for a no compromise eco-friendly computing experience.
