Internal I/O
| Serial port via internal header |
Y |
| mSATA ports quantity |
1 |
| Number of SATA connectors |
4 |
| PCI Express power connectors (6-pin) |
2 |
| Number of SATA III connectors |
2 |
| Number of SATA II connectors |
2 |
Performance
| Motherboard form factor |
Mini ITX |
| Motherboard chipset family |
Intel |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
1600 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |

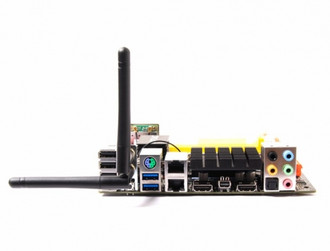

Back panel I/O ports
| Serial ports quantity |
1 |
| WiFi-AP antenna jack |
1 |
| PS/2 ports quantity |
1 |
| S/PDIF out port |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
8 |
| HDMI ports quantity |
2 |
Networking
| Bluetooth version |
3.0 |
| Wi-Fi |
Y |
| Bluetooth |
Y |
| Networking features |
10/100/1000 Mbps |
Expansion slots
| PCI Express configurations |
1x16 |
Additionally
| Chipset |
Intel Z77 |
| Mini DisplayPort quantity |
1 |
| Intel HD Audio Technology |
Y |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

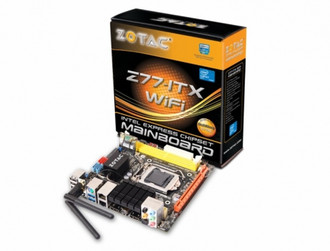

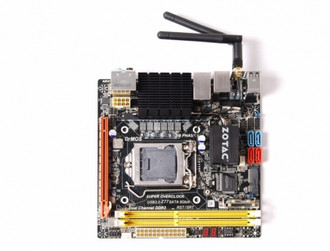

mini-ITX, Z77 Express, Intel HD Graphics 2500/4000, LGA1155, 2x240-pin DIMM, DDR3 1600MHz, 1xPCIe, 1xMini-PCIe, 1xmSATA, 2xHDMI, Mini-DP, 2xSATA 6Gb/s, 2xSATA 3Gb/s, 4xUSB 3.0, 8xUSB 2.0, Ethernet, Wi-Fi
Experience unprecedented performance from a small form factor system with the Intel® 7-series powered ZOTAC mainboard -- the ultimate mini-ITX solution for gamers and enthusiasts. The Intel® 7-series powered ZOTAC mainboard embraces 3rd Generation Intel(R) Core(tm) family processors for unmatched performance, outstanding energy efficiency and high-definition capable graphics processing.
A PCI Express 3.0 x16 expansion slot is available on the Intel® 7-series powered ZOTAC mainboard for gamers that desire running the latest discrete ZOTAC graphics cards for life like visuals and out of this world 3D performance. Storage expansion capabilities are plentiful on the Intel® 7-series powered ZOTAC mainboard with SATA 6.0 Gb/s, SATA 3.0 Gb/s and mSATA ports internally while USB 3.0 and USB 2.0 are available for external expansion.
