Packaging content
| Windows keys |
N |
| Display included |
N |
| Keyboard supplied |
N |
| Numeric keypad |
N |
| Handheld remote control |
Y |
| Mouse included |
N |
Storage
| Hard drive size |
2.5 " |
| Hard drive capacity |
320 GB |
| Hard drive speed |
5400 RPM |
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD |
| Total storage capacity |
320 GB |
| Card reader integrated |
Y |
| Storage media |
HDD |
| Hard drive interface |
Serial ATA III |
| Number of hard drives installed |
1 |
Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Bluetooth version |
4.0 |
| Wi-Fi |
Y |
| Bluetooth |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Optical drive
| LightScribe |
N |
| Optical drive type |
N |
Processor special features
| Intel® Rapid Start Technology |
N |
| Intel® Smart Response Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel vPro Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Smart Connect Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
Graphics
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter family |
AMD Radeon HD 7000 |
| On-board graphics adapter |
Y |
Memory
| Memory slots |
2 |
| Maximum internal memory |
16 GB |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
| Memory clock speed |
1333 MHz |
Ports & interfaces
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
Y |
| SmartCard slot |
N |
| Combo headphone/mic port |
N |
Other features
| Number of hard drives supported |
1 |
| Form factor |
Nettop |
| Cooling type |
Active |
Processor
| Processor cores |
2 |
| Processor frequency |
1.7 GHz |
| Number of processors installed |
1 |
| Processor cache |
1 MB |
Additionally
| Chipset |
AMD M3L |
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

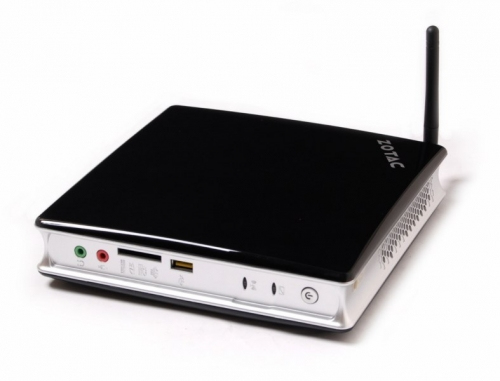

ZBOX-AD06 PLUS, E2-1800, M3L, Radeon HD 7340, 2GB DDR3, 320GB (5400rpm), SATAIII, Wi-Fi b/g/n, Bluetooth 4.0, MMC/SD/SDHC/MS/MS Pro/xD, DVI, HDMI
Raise your performance expectations for energy-efficient computing with the digital media friendly ZOTAC ZBOX AD06 Plus mini-PC powered by the AMD E2-1800 APU platform. Paired with AMD Radeon Discrete-Class Graphics, the ZOTAC ZBOX AD06 Plus delivers the perfect synergy of GPU and CPU performance for a rich multimedia computing experience with flawless high-definition video playback capabilities and ultra-fast responsiveness for regular day-to-day computing tasks.
High performance energy-efficient computing is only two thumbscrews away with the ZOTAC ZBOX AD06 Plus mini-PC thanks to a user-friendly design that makes mastering the mini-PC quick and easy. Space for a 2.5-inch hard drive and 2 204-pin DDR3-1333 SO-DIMM slots enables users to customize the internals of the ZOTAC ZBOX AD06 Plus to their own needs – a 320GB hard drive and 2GB of DDR3 are included -- while USB 3.0 and USB 2.0 ports and a 6-in-1 memory card reader (SD/SDHC/MS/MS Pro/xD/MMC) provide greater external expansion capabilities for perfect energy-efficient computing.
