Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Wake-on-Ring ready |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
Y |
Processor
| Number of processors installed |
1 |
| Processor cache |
1 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| Processor codename |
Pineview |
| Conflict Free processor |
N |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Processor cache type |
L2 |
| Tjunction |
100 °C |
| FSB Parity |
N |
| Processor operating modes |
64-bit |
| Processor front side bus |
800 MHz |
| Number of Processing Die Transistors |
176 M |
| Stepping |
B0 |
| Processor cores |
2 |
| Processor frequency |
1.8 GHz |
| ECC supported by processor |
N |
| Maximum internal memory supported by processor |
4 GB |
| Bus type |
DMI |
Ports & interfaces
| DVI port |
Y |
| Headphone outputs |
1 |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Processor special features
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
32 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
49490 |
| Processor code |
SLBXC |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
Graphics
| On-board graphics adapter |
Y |
| Discrete graphics memory type |
GDDR3 |
| Discrete graphics adapter model |
NVIDIA ION |
| Discrete graphics adapter memory |
512 GB |
Other features
| CD read speed |
24 x |
| HDMI |
Y |
| Ethernet interface type |
Gigabit Ethernet |
| Graphics adapter family |
NVIDIA |
| CD write speed |
24 x |
| CD rewrite speed |
24 x |
| Wireless technology |
WiFi |
| Platform |
PC |
| Power supply type |
AC/DC |
Memory
| Memory clock speed |
800 MHz |
| Memory slots |
2x SO-DIMM |
| Internal memory type |
DDR3-SDRAM |
| Maximum internal memory |
4 GB |
| Internal memory |
2 GB |
Storage
| Hard drive speed |
5400 RPM |
| Compatible memory cards |
Memory Stick (MS), MMC, SD, SDHC, SDXC, xD |
| Total storage capacity |
250 GB |
| Card reader integrated |
Y |
| Number of hard drives installed |
1 |
Optical drive
| Optical drive type |
DVD Super Multi |
Design
| Cable lock slot |
Kensington |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel NM10 |
| Processing die size |
87 mm² |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Intel Atom D525 ВuaL Core (L2 Cache, DMI 2.5 GT/s) 1.8 GHz, 2GB DDR3 (2x SO-DIMM) 800 MHz, 250 GB (5400 RPM) HDD, 6-in-1 MMC/SD/SDHC/MS/MS Pro/xD, eSATA, 1x USB 2.0, 2x USB 3.0, 1x DVI/VGA, 3D

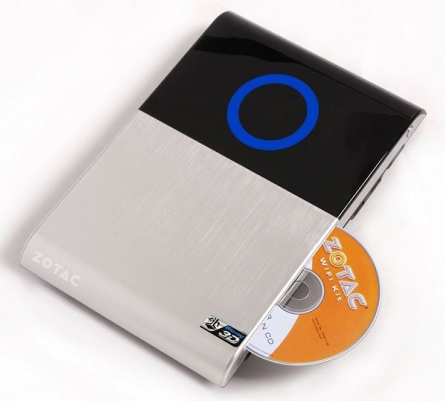

Experience stunning high-definition Blu-ray 3D video playback in glorious 1080p with the ZOTAC® ZBOX Blu-ray 3D ID36 powered by Next-Generation NVIDIA® ION™ technology with 512MB of DDR3 video memory. NVIDIA® PureVideo™ HD technology enables the ZOTAC® ZBOX Blu-ray 3D ID36 to deliver immersive Blu-ray 3D video playback using the integrated slot-load Blu-ray drive with native 1080p 3D video output to let users experience movies the way directors intended.
An Intel® Atom™ D525 joins the Next-Generation NVIDIA® ION™ graphics processor to form an energy-efficient duo able to deliver a premium computing experience with rich audio, video and web capabilities with the ZOTAC® ZBOX Blu-ray 3D ID36. Class-leading expansion capabilities equip the ZOTAC® ZBOX Blu-ray 3D ID36 with room to accommodate a 2.5-inch SATA hard drive, two DDR3 SO-DIMM slots and one mini-PCI Express slot in addition to the standard two USB 3.0, USB 2.0 port, combo eSATA 3.0 Gb/s and USB 2.0 port, DVI, HDMI, S/PDIF optical outputs, 6-in-1 memory card reader and 802.11n WiFi.
