Graphics
| Graphics adapter memory type |
GDDR3 |
| Maximum graphics adapter memory |
512 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
NVIDIA |
Memory
| Supported memory clock speeds |
1333 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
1 |
| Compatible memory cards |
MMC, SD, SDHC, SDXC |
| Card reader integrated |
Y |
Motherboard
| Supported processor frequency (max) |
1.1 GHz |
Other features
| Number of processors installed |
1 |
| Power LED |
Y |
Ports & interfaces
| DVI port |
Y |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
Processor
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
17 W |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
1.1 GHz |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Quick Sync Video Technology |
N |
| Intel 64 |
Y |
| Intel Dual Display Capable Technology |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Networking
| Bluetooth version |
4.0 |
| Wi-Fi |
Y |
| Bluetooth |
Y |
| Networking features |
Gigabit Ethernet |
Expansion slots
| PCI Express slots version |
2.0 |
Additionally
| Chipset |
Intel HM70 Express |
| Graphics |
GeForce GT 610 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
Intel Core 1.1 GHz Dual-Core, 2 x 204-pin SO-DIMM, 1 x SATA 6.0 Gbps, NVIDIA GeForce GT 610 512MB, HDMI/DVI, 2 x 10/100/1000Mbps, Wi-Fi, Bluetooth 4.0

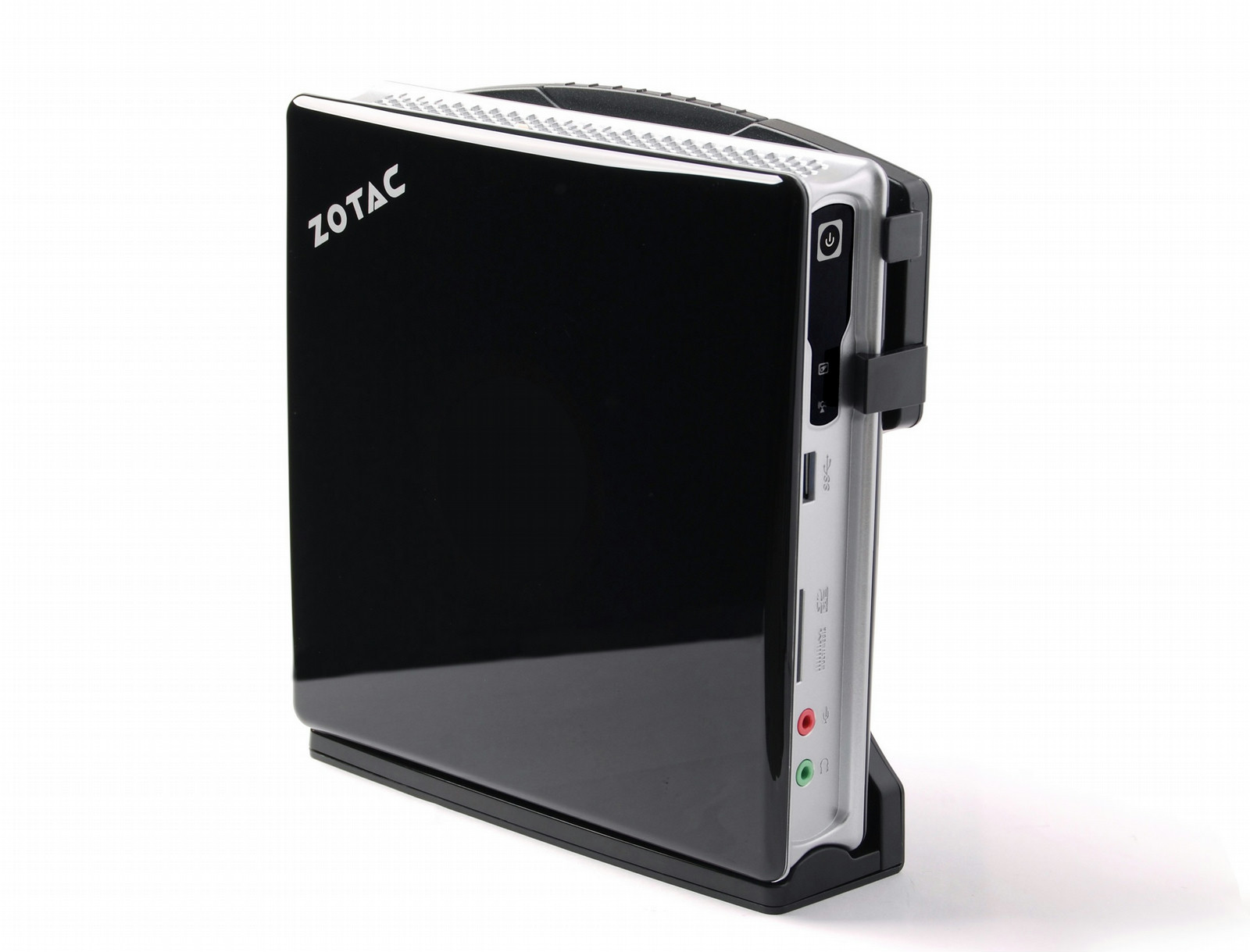

Enjoy eco-friendly computing with superior energy-efficiency and performance with the ZOTAC ZBOX ID42 mini-PC powered by an NVIDIA GeForce GT 610 graphics processor and Intel Core Processor. NVIDIA GeForce GT 610 graphics deliver unrivaled levels of performance and high definition video decode capabilities to the ZOTAC ZBOX ID42 mini-PC with NVIDIA CUDA, hardware-accelerated HD video decode and HDMI 1.4a technologies for eco-friendly computing with premium audio and video capabilities.
High performance eco-friendly computing is only two thumb screws away with the ZOTAC ZBOX ID42 mini-PC thanks to a user friendly design that makes mastering the mini-PC quick and easy. Space for a 2.5-inch hard drive and 2 204-pin DDR3-1333 SO-DIMM slots enable users to customize the internals of the ZOTAC ZBOX ID42 to their own needs while USB 3.0, USB 2.0 ports and a 4-in-1 memory card reader (SD/SDHC/SDXC/MMC) provide greater external expansion capabilities for perfect eco-friendly computing.
