Memory
| Supported memory clock speeds |
1333 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Other features
| Hard drive size |
2.5 " |
| Number of processors installed |
1 |
| Power LED |
Y |
Storage
| Number of storage drives supported |
1 |
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD |
| Optical drive type |
N |
| Card reader integrated |
Y |
Ports & interfaces
| Combo headphone/mic port |
N |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
Processor
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
17 W |
| Processor cores |
2 |
| Processor frequency |
1.2 GHz |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Intel® Quick Sync Video Technology |
N |
| Intel 64 |
Y |
| Intel® Smart Response Technology |
N |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Expansion slots
| PCI Express slots version |
2.0 |
Networking
| Wi-Fi |
Y |
| Networking features |
Gigabit Ethernet, WLAN |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel HM65 Express |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

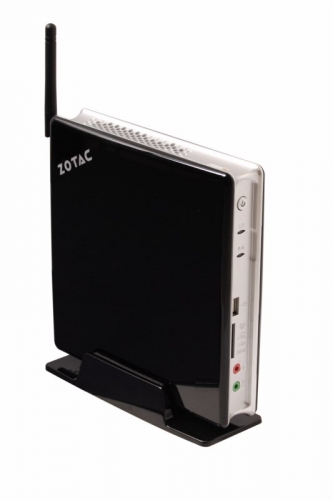

ZBOX ID81 - Intel Celeron Processor 857 (2M Cache, 1.20 GHz), Intel HM65, 2 x 204-pin SoDIMM DDR3 max.16GB, 6.35 cm (2.5 ") SATA III HDD/SSD, Gigabit Ethernet, WLAN 802.11b/g/n, Bluetooth 3.0, USB 3.0, mini-PC
Experience the power of Intel®’s Sandy Bridge architecture in a compact form factor with the ZOTAC ZBOX ID81 mini-PC. Powered by an Intel® Celeron® Processor 857, the ZOTAC ZBOX ID81 takes CPU performance to the next level with desktop-class processing power that sips miniscule amounts of energy.
Integrated Intel® graphics enable the ZOTAC ZBOX ID81 mini-PC to simultaneously drive dual independent displays via HDMI and DVI for superior productivity capabilities from the mini-PC. Space for a 2.5-inch hard drive and 2 204-pin DDR3-1333 SO-DIMM slots enables users to customize the internals of the ZOTAC ZBOX ID81 to their own needs while USB 3.0 and USB 2.0 ports and a 6-in-1 memory card reader (SD/SDHC/MS/MS Pro/xD/MMC) provide greater external expansion capabilities for perfect energy-efficient computing.
