Memory
| Supported memory clock speeds |
1333 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
1 |
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD |
| Card reader integrated |
Y |
Other features
| Number of SATA connectors |
1 |
| Number of processors installed |
1 |
| Power LED |
Y |
Motherboard
| Number of processors supported |
1 |
Ports & interfaces
| DVI port |
Y |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Processor
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
35 W |
| Processor cores |
2 |
| Processor frequency |
2.2 GHz |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Dual Display Capable Technology |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Networking
| Bluetooth version |
3.0 |
| Wi-Fi |
Y |
Power
| Number of power supply units |
1 |
Audio
| Audio system |
High-definition analog stereo |
Expansion slots
| PCI Express slots version |
2.0 |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel HM65 Express |
| Graphics |
HD Graphics 3000 |
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

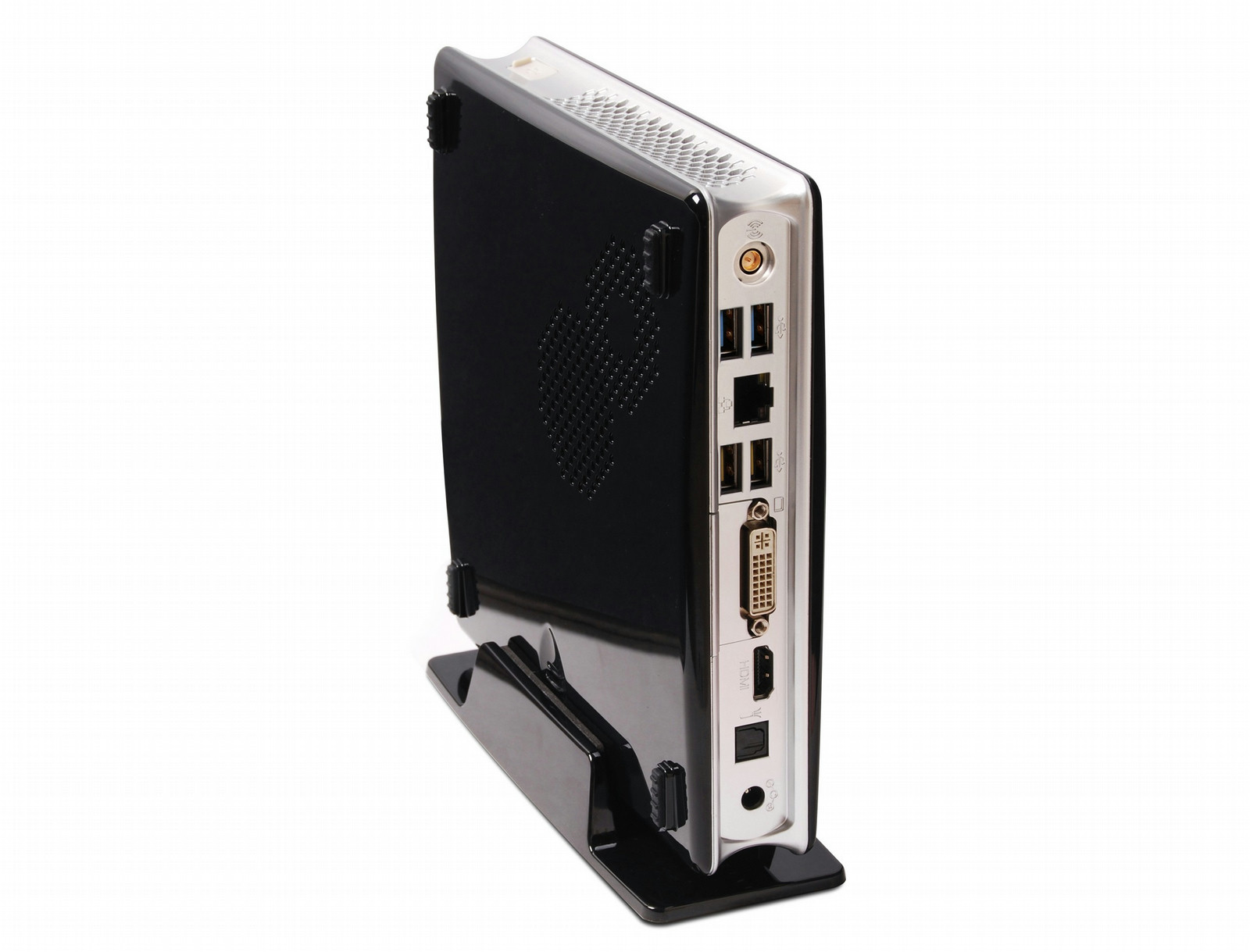

ZBOX ID82, i3-2330M, HM65 Express, HD Graphics 3000, Wi-Fi b/g/n, 2x SO-DIMM, 1x 2.5", SATAIII, 2x USB 3.0, 4x USB 2.0
Experience unprecedented CPU performance from a mini-PC with the compact ZOTAC ZBOX. ID82 and Intel®'s 2nd-Generation Core processor. Equipped with an Intel® Core™ i3 2330M processor with dual-cores, Intel® HyperThreading™ and Intel® Virtualization technology, the ZOTAC ZBOX ID82 delivers outstanding multi-tasking performance and maximal manageability, security and flexibility with virtualized operating systems.
Intel® HD Graphics 3000 graphics processing with Intel® Clear Video HD and Intel® InTru™ 3D technology transforms the ZOTAC ZBOX ID82 into a multimedia powerhouse with hardwareaccelerated HD video playback and stereoscopic 3D video output via HDMI 1.4a. Intel® Quick Sync video technology enables lightning-fast video transcoding capabilities with supported software on the ZOTAC ZBOX ID82 for quick conversion of various video formats for playback on portable media players, tablets and other mobile devices.
