Processor
| Processor cache |
1 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
10 W |
| Processor codename |
Cedarview |
| Memory clock speeds supported by processor |
800, 1066 MHz |
| Memory channels supported by processor |
Single |
| Conflict Free processor |
N |
| Tjunction |
100 C °C |
| FSB Parity |
N |
| Processor operating modes |
64-bit |
| Processor cores |
2 |
| Processor frequency |
1.86 GHz |
| ECC supported by processor |
N |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Maximum internal memory supported by processor |
4 GB |
| Processor cache type |
L2 |
| Number of processors installed |
1 |
| Maximum number of PCI Express lanes |
4 |
| Stepping |
B3 |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
Processor special features
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
N |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel Smart Connect Technology |
N |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Physical Address Extension (PAE) |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel® Rapid Start Technology |
N |
| Intel® Smart Response Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
| Intel Rapid Storage Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
65470 |
| Processor code |
SR0VY |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Bluetooth version |
3.0 |
| Wi-Fi |
Y |
| Bluetooth |
Y |
Memory
| Memory clock speed |
1066 MHz |
| Memory slots |
2 |
| Maximum internal memory |
4 GB |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
Graphics
| On-board graphics adapter base frequency |
640 MHz |
| Discrete graphics adapter memory |
512 GB |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter |
Y |
| Discrete graphics adapter model |
NVIDIA GeForce GT 520M |
Storage
| Hard drive capacity |
320 GB |
| Hard drive speed |
5400 RPM |
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO Duo, SD, SDHC, xD |
| Storage media |
HDD |
| Hard drive interface |
Serial ATA II |
| Number of hard drives installed |
1 |
| Hard drive size |
2.5 " |
| Total storage capacity |
320 GB |
| Card reader integrated |
Y |
Other features
| Number of hard drives supported |
1 |
| Cooling type |
Active |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| DC-in jack |
Y |
| DVI port |
Y |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
Packaging content
| Display included |
N |
| Keyboard supplied |
N |
| Handheld remote control |
Y |
| Mouse included |
N |
Additionally
| InTru™ 3D Technology |
N |
| Ethernet LAN connection |
Y |
| Chipset |
Intel NM10 Express |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

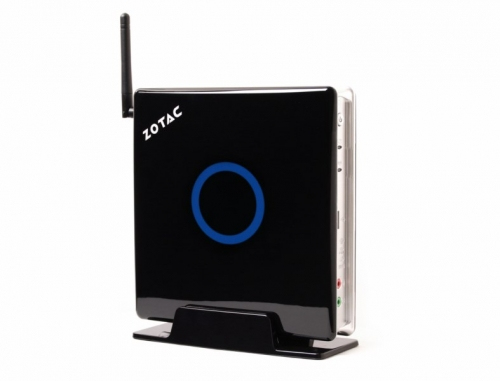

ZBOX ID84 PLUS, Atom D2550, NM10, GeForce GT 520M, Wi-Fi b/g/n, Bluetooth 3.0, 2GB DDR3, 320GB (5400rpm), SATAII, 2x USB 3.0, MMC/SD/SDHC/MS/MS Pro/xD, HDMI, DVI
Enjoy eco-friendly computing with superior energy-efficiency and performance with the ZOTAC ZBOX ID84 Plus mini-PC powered by an NVIDIA® GeForce® GT 520M graphics processor and Intel® AtomTM processor. NVIDIA® GeForce® GT 520M graphics deliver unrivaled levels of performance and high definition video decode capabilities to the ZOTAC ZBOX ID84 Plus mini-PC with NVIDIA® CUDATM, PureVideoTM HD and HDMI 1.4a technologies for eco-friendly computing with premium audio and video capabilities.
High performance eco-friendly computing is only two thumb screws away with the ZOTAC ZBOX ID84 Plus mini-PC thanks to a user friendly design that makes mastering the mini- PC quick and easy. Space for a 2.5-inch hard drive and 2 204-pin DDR3-1066 SO-DIMM lots enable users to customize the internals of the ZOTAC ZBOX ID84 Plus to their own needs – a 320GB hard drive and 2GB of DDR3 are included -- while USB 3.0 and USB 2.0 ports and a 6-in-1 memory card reader (SD/SDHC/MS/MS Pro/xD/MMC) and provide greater external expansion capabilities for perfect eco-friendly computing.
