Processor
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
10 W |
| Maximum number of PCI Express lanes |
4 |
| Processor codename |
Cedarview |
| Memory clock speeds supported by processor |
800, 1066 MHz |
| Memory channels supported by processor |
Single |
| Conflict Free processor |
N |
| Tjunction |
100 C °C |
| FSB Parity |
N |
| Processor operating modes |
64-bit |
| Processor frequency |
1.86 GHz |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Maximum internal memory supported by processor |
4 GB |
| Processor cache type |
L2 |
| Number of processors installed |
1 |
| Processor cache |
1 MB |
| Stepping |
B3 |
| Processor cores |
2 |
Processor special features
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
N |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel Smart Connect Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
65470 |
| Processor code |
SR0VY |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Physical Address Extension (PAE) |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel® Rapid Start Technology |
N |
| Intel® Smart Response Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
| Intel Rapid Storage Technology |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Bluetooth version |
4.0 |
| Wi-Fi |
Y |
| Bluetooth |
Y |
| Cabling technology |
10/100/1000Base-T(X) |
Memory
| Memory clock speed |
1066 MHz |
| Memory slots |
2 |
| Maximum internal memory |
4 GB |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
Packaging content
| Drivers included |
Y |
| Keyboard supplied |
N |
| Display included |
N |
| Mouse included |
N |
Graphics
| Discrete graphics memory type |
GDDR3 |
| Discrete graphics adapter model |
NVIDIA GeForce 610 |
| On-board graphics adapter base frequency |
640 MHz |
| Discrete graphics adapter memory |
512 GB |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter |
Y |
Storage
| Hard drive capacity |
500 GB |
| Hard drive speed |
5400 RPM |
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD |
| Storage media |
HDD |
| Hard drive interface |
Serial ATA |
| Number of hard drives installed |
1 |
| Hard drive size |
2.5 " |
| Total storage capacity |
500 GB |
| Card reader integrated |
Y |
Ports & interfaces
| Headphone outputs |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
Y |
| SmartCard slot |
N |
| Combo headphone/mic port |
N |
| S/PDIF out port |
Y |
| Microphone in |
Y |
Other features
| Number of hard drives supported |
1 |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel NM10 Express |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

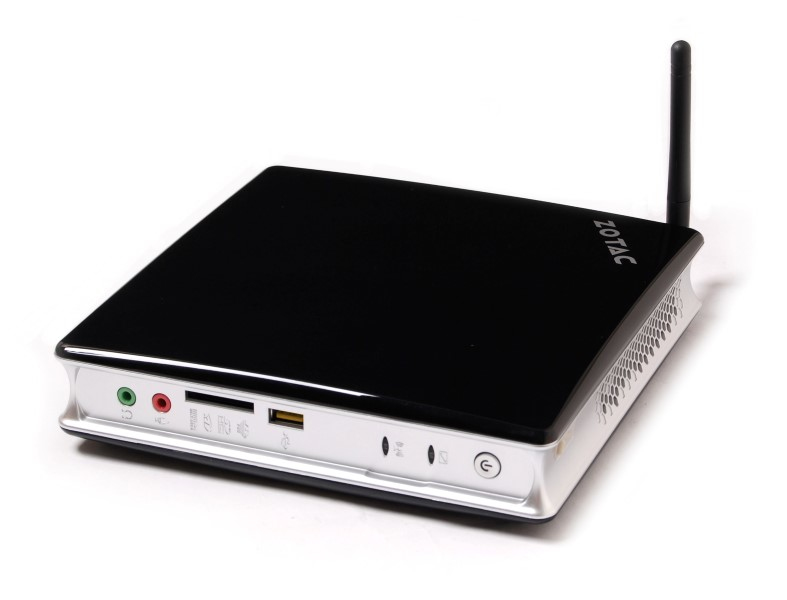

ZBOX ID86 Plus, Atom D2550, NM10, GeForce GT 610, Wi-Fi b/g/n, Bluetooth 4.0, 2GB DDR3, 500GB (5400rpm), SATAII, 2x USB 3.0, MMC/SD/SDHC/MS/MS Pro/xD, DVI, HDMI
Enjoy eco-friendly computing with superior energy-efficiency and performance with the ZOTAC ZBOX ID86 Plus mini-PC powered by an NVIDIA GeForce GT 610 graphics processor and Intel Atom processor. NVIDIA GeForce GT 610 graphics deliver unrivaled levels of performance and high definition video decode capabilities to the ZOTAC ZBOX ID86 Plus mini-PC with NVIDIA CUDA, PureVideo HD and HDMI 1.4a technologies for eco-friendly computing with premium audio and video capabilities.
High performance eco-friendly computing is only two thumb screws away with the ZOTAC ZBOX ID86 Plus mini-PC thanks to a user friendly design that makes mastering the mini-PC quick and easy. Space for a 2.5-inch hard drive and 2 204-pin DDR3-1066 SO-DIMM slots enable users to customize the internals of the ZOTAC ZBOX ID86 Plus to their own needs – a 500GB hard drive and 2GB of DDR3 are included -- while USB 3.0 and USB 2.0 ports and a 6-in-1 memory card reader (SD/SDHC/MS/MS Pro/xD/MMC) and provide greater external expansion capabilities for perfect eco-friendly computing.
