Memory
| Memory clock speed |
1600 MHz |
| Memory slots |
2 |
| Maximum internal memory |
16 GB |
| Internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
Processor special features
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel® Rapid Start Technology |
N |
| Intel® Smart Response Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Identity Protection Technology version |
1.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel TSX-NI version |
0.00 |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel Smart Connect Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Processor package size |
37.5 mm |
| Processor ARK ID |
65703 |
| Supported instruction sets |
AVX |
Processor
| Memory clock speeds supported by processor |
1333, 1600 MHz |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
Y |
| PCI Express configurations |
2x8 |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
29 |
| Processor operating modes |
64-bit |
| Processor socket |
LGA 1155 (Socket H2) |
| Processor cores |
2 |
| Processor frequency |
2.8 GHz |
| Tcase |
65 °C |
| ECC supported by processor |
N |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Maximum internal memory supported by processor |
32 GB |
| Processor cache type |
Smart Cache |
| PCI Express slots version |
3.0 |
| Number of processors installed |
1 |
| Processor boost frequency |
3.5 GHz |
| Processor cache |
6 MB |
| Processor lithography |
22 nm |
| Thermal Design Power (TDP) |
35 W |
| Processor codename |
Ivy Bridge |
| Bus type |
DMI |
Networking
| Bluetooth version |
4.0 |
| Wi-Fi |
Y |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Bluetooth |
Y |
Packaging content
| Keyboard supplied |
N |
| Numeric keypad |
N |
| Handheld remote control |
Y |
| Full HD |
N |
| Mouse included |
N |
| Windows keys |
N |
| Display included |
N |
Graphics
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter base frequency |
650 MHz |
| On-board graphics adapter dynamic frequency (max) |
1050 MHz |
| Number of displays supported (on-board graphics) |
3 |
| On-board graphics adapter family |
Intel HD Graphics |
| On-board graphics adapter |
Y |
| On-board graphics adapter ID |
0x152 |
Storage
| Hard drive capacity |
500 GB |
| Hard drive speed |
5400 RPM |
| Compatible memory cards |
MMC, SD, SDHC, SDXC |
| Total storage capacity |
500 GB |
| Card reader integrated |
Y |
| Storage media |
HDD |
| Hard drive interface |
Serial ATA II |
Optical drive
| Optical drive type |
N |
| LightScribe |
N |
Ports & interfaces
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| DVI port |
Y |
| SmartCard slot |
N |
| Combo headphone/mic port |
N |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel H61 Express |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

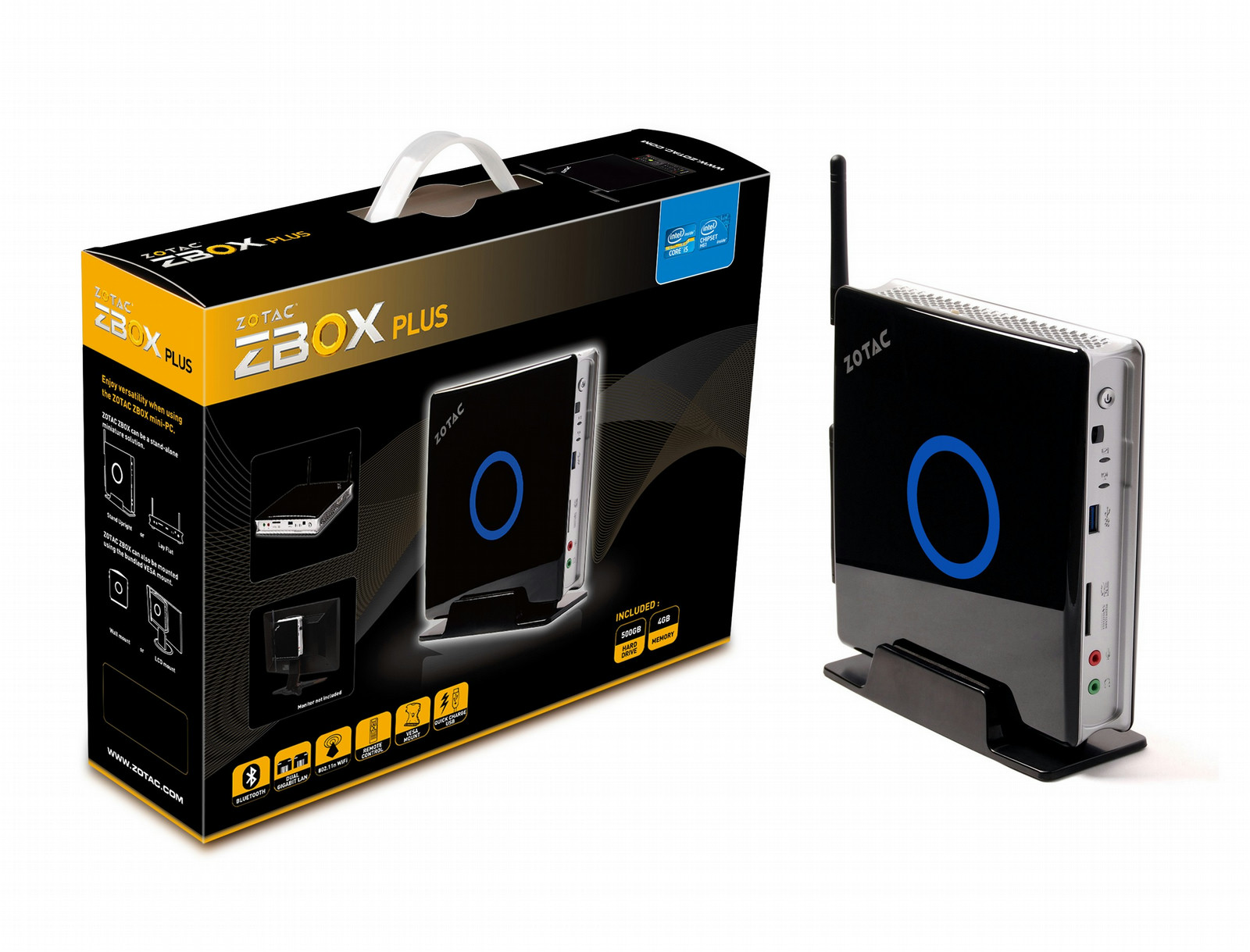

ZBOX ID89 Plus, i5 3470T, H61 Express, HD Graphics 2500, 4GB RAM, 500GB HDD, LAN, WiFi, BT 4.0, HDMI, 2x USB 3.0, MMC/SD/SDHC/SDXC, IR
Experience unprecedented CPU performance in a compact form factor with the ZOTAC ZBOX ID89 Plus powered by an Intel 3rd-Generation Core processor. Equipped with a high-performance 3rd-Generation Intel Core processor with multiple cores, Intel HyperThreading and Intel Virtualization technology, the ZOTAC ZBOX ID89 Plus delivers outstanding processing power that rivals larger desktop systems while sipping miniscule amounts of energy for energy-efficient computing with unchained performance.
Intel HD Graphics with Intel Clear Video HD and Intel InTru 3D technology transforms the ZOTAC ZBOX ID89 Plus into a multimedia powerhouse with hardware-accelerated HD video playback and stereoscopic 3D video output via HDMI 1.4a. Intel Quick Sync video technology enables lightning-fast video transcoding capabilities with supported software on the ZOTAC ZBOX ID89 Plus for quick conversion of various video formats for playback on portable media players, tablets and other mobile devices.
