Ports & interfaces
| Microphone in |
Y |
| SmartCard slot |
N |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| Headphone outputs |
1 |
| DC-in jack |
Y |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| eSATA ports quantity |
1 |
| S/PDIF out port |
Y |
Networking
| Bluetooth |
Y |
| Wake-on-LAN ready |
Y |
| Wi-Fi |
Y |
Memory
| Memory slots |
1x SO-DIMM |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
| Memory clock speed |
1333 MHz |
Storage
| Hard drive speed |
5400 RPM |
| Storage media |
HDD |
| Card reader integrated |
Y |
| Total storage capacity |
320 GB |
Graphics
| Discrete graphics adapter model |
N |
Processor
| Processor cores |
2 |
| L2 cache |
1 MB |
| Processor frequency |
1.7 GHz |
Additionally
| Chipset |
AMD A68M |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |

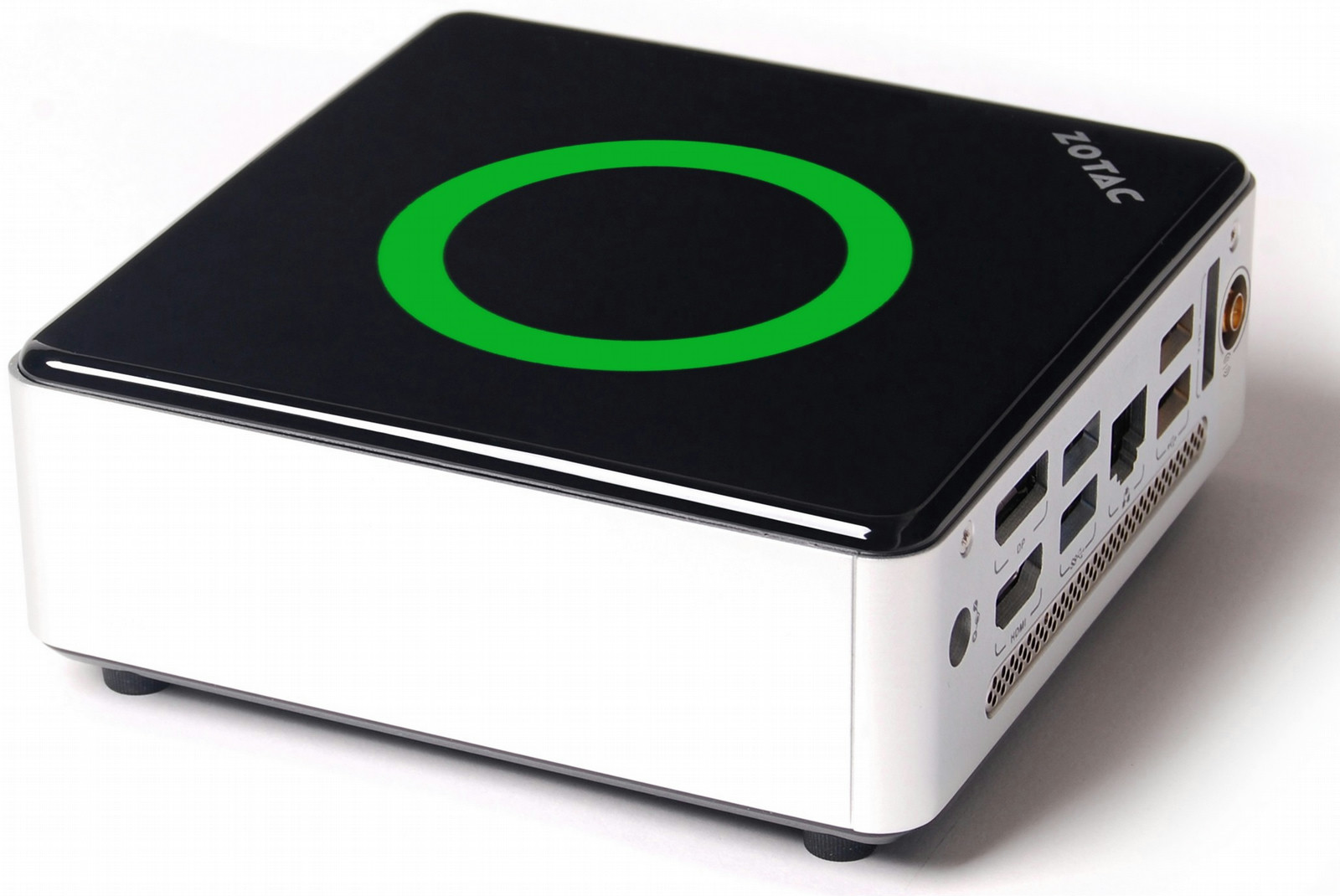

Zbox nano AD12 Plus, AMD A68M, AMD E2-1800 APU, DDR3 2GB (1333MHz), HDD 320GB (5400RPM), USB 3.0, Radeon HD 7340, Bluetooth 3.0, Wi-fi, Gigabit Ethernet, black/white
Raise your performance expectations for energy-efficient computing with the palm-sized Zotac Zbox nano AD12 Plus mini-PC powered by the AMD E2-1800 APU. Paired with AMD Radeon HD 7340 graphics, the Zotac Zbox nano AD12 Plus delivers the perfect synergy of GPU and CPU performance for a rich multimedia computing experience with flawless high-definition video playback capabilities and ultra-fast responsiveness for regular day-to-day computing tasks.
High performance energy-efficient computing is only a couple thumbscrews away with the Zotac Zbox nano AD12 Plus mini-PC thanks to a user-friendly design that makes mastering the mini-PC quick and easy. Space for a 2.5-inch hard drive and a 204-pin DDR3-1333 SO-DIMM slot enables users to customize the internals of the Zotac Zbox nano AD12 Plus to their own needs – a 320GB hard drive and 2GB of DDR3 are included - while USB 3.0 and USB 2.0 ports, a 7-in-1 memory card reader and eSATA port provide greater external expansion capabilities for perfect palm-sized energy-efficient computing.
