Processor special features
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
31 x 24 mm |
| Processor ARK ID |
63918 |
| Intel® Quick Sync Video Technology |
N |
| Intel 64 |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE4.x |
| Intel Fast Memory Access |
Y |
| Intel vPro Technology |
N |
Processor
| Thermal Design Power (TDP) |
17 W |
| Maximum number of PCI Express lanes |
16 |
| Processor codename |
Sandy Bridge |
| Memory clock speeds supported by processor |
1066, 1333 MHz |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
Y |
| PCI Express configurations |
1x16, 1x8+2x4, 2x8 |
| Integrated 4G WiMAX |
N |
| Memory bandwidth supported by processor (max) |
21.3 GB/s |
| Processor operating modes |
64-bit |
| Processor socket |
BGA 1023 |
| Processor cores |
2 |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
| Maximum internal memory supported by processor |
16 GB |
| Processor cache type |
L3 |
| PCI Express slots version |
2.0 |
| Number of processors installed |
1 |
| Processor cache |
2 MB |
| Processor lithography |
32 nm |
| Processor frequency |
1.3 GHz |
Graphics
| On-board graphics adapter family |
Intel HD Graphics |
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter base frequency |
350 MHz |
| On-board graphics adapter dynamic frequency (max) |
1000 MHz |
| Number of displays supported (on-board graphics) |
2 |
| On-board graphics adapter |
Y |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Bluetooth version |
3.0 |
| Bluetooth |
Y |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
Y |
Memory
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
1 x 2 GB |
| Memory slots |
1x SO-DIMM |
| Maximum internal memory |
8 GB |
| Internal memory type |
DDR3-SDRAM |
| Internal memory |
2 GB |
Packaging content
| Keyboard supplied |
N |
| Handheld remote control |
Y |
| Mouse included |
N |
| Display included |
N |
Storage
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO, SD, SDHC, SDXC, xD |
| Card reader integrated |
Y |
| Storage media |
HDD |
| Hard drive size |
2.5 " |
| Hard drive interface |
Serial ATA III |
Ports & interfaces
| Line-in |
Y |
| Line-out |
Y |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
N |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel HM65 Express |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
5 GT/s |
| Ethernet LAN connection |
Y |
Intel Celeron 867 1.3GHz, 2GB DDR3, 1x 2.5" SATA3, Gigabit Ethernet, 802.11n, Bluetooth 3.0, Windows 8

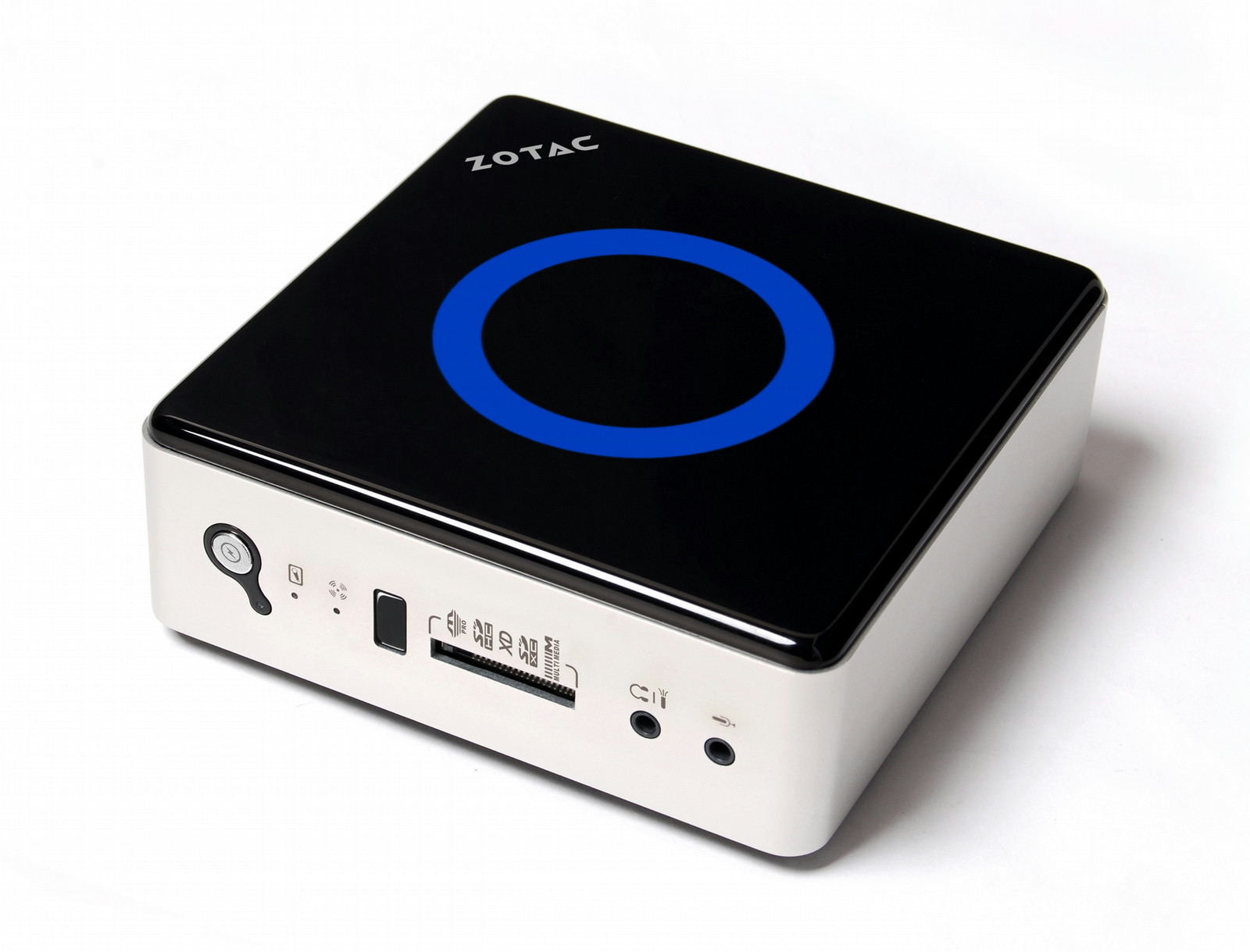

Experience the power of Intel®’s Sandy Bridge architecture in a compact form factor with the ZOTAC ZBOX nano ID61 mini-PC. Powered by an Intel® Celeron® Processor 867, the ZOTAC ZBOX nano ID61 takes CPU performance to the next level with desktop-class processing power that sips miniscule amounts of energy.
Integrated Intel® graphics enable the ZOTAC ZBOX nano ID61 mini-PC to simultaneously drive dual independent displays via HDMI and DisplayPort for superior productivity capabilities from the mini-PC. Space for a 2.5-inch hard drive and a 204-pin DDR3-1333 SO-DIMM slot enables users to customize the internals of the ZOTAC ZBOX nano ID61 to their own needs while USB 3.0, USB 2.0 ports and a 7-in-1 memory card reader (SD/SDHC/SDXC/MS/MS Pro/xD/MMC) provide greater external expansion capabilities for perfect energy-efficient computing.
