Storage
| Hard drive size |
2.5 " |
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD |
| Card reader integrated |
Y |
| Number of hard drives installed |
1 |
| Hard drive interface |
Serial ATA |
| Solid-state drive interface |
Serial ATA |
Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Bluetooth version |
3.0 |
| Wi-Fi |
Y |
| Bluetooth |
Y |
Packaging content
| Display included |
N |
| Handheld remote control |
Y |
Processor
| Number of processors installed |
1 |
| Processor cache |
2 MB |
| Processor cache type |
L3 |
| Processor cores |
2 |
| Processor frequency |
1.3 GHz |
Ports & interfaces
| DVI port |
N |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
Graphics
| On-board graphics adapter |
Y |
| On-board graphics adapter family |
Intel HD Graphics |
| Discrete graphics adapter model |
Not available |
Other features
| HDMI |
Y |
| Graphics adapter family |
Intel |
| Ethernet interface type |
Gigabit Ethernet |
| Wireless technology |
WiFi |
| Form factor |
mini-PC |
| Platform |
PC |
| Power supply type |
AC/DC |
Memory
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
1 x 8 GB |
| Memory slots |
1x SO-DIMM |
| Internal memory type |
DDR3-SDRAM |
| Maximum internal memory |
8 GB |
Additionally
| Chipset |
Intel HM65 Express |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
5 GT/s |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Mini-PC - Intel Celeron Processor 867 Dual Core (L3 Cache 2M, DMI 5 GT/s) 1.3 GHz, DDR3 (1x SO-DIMM) 1333 MHz, 6.35 cm (2.5 ") SATA 6.0 Gb/s (HDD, SSD), 2x USB 3.0, 2x USB 2.0, HDMI, eSATA, LAN, WiFi, S/PDIF, 6-in-1 MMC/SD/SDHC/MS/MS Pro/xD

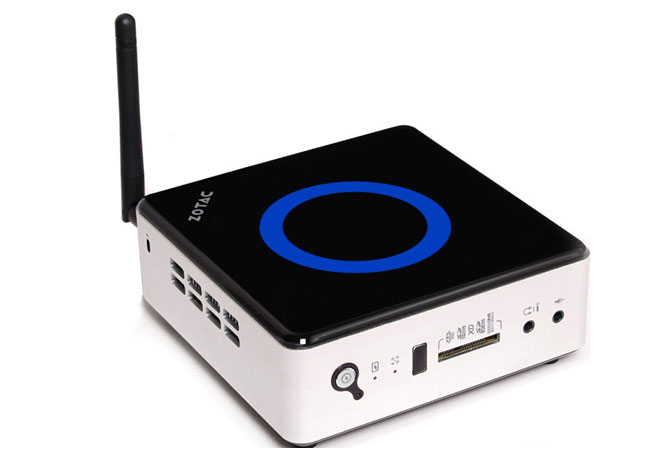

Experience the pinnacle of computing value with the palm-sized ZOTAC ZBOX nano VD01 mini-PC powered by the VIA Nano™ X2 U4025 dual-core processor. The ZOTAC ZBOX nano VD01 combines a VIA Nano™ X2 processor with the VIA VX900H Media System Processor with VIA Chrome9™ HCM graphics processor for enhanced video playback capabilities that accelerates streaming Internet video and high-definition Blu-ray decoding.
High performance energy-efficient computing is only a couple thumbscrews away with the ZOTAC ZBOX nano VD01 mini-PC thanks to a user-friendly design that makes mastering the mini-PC quick and easy. Space for a 2.5-inch hard drive and a 204-pin DDR3-1066 SO-DIMM slot enables users to customize the internals of the ZOTAC ZBOX nano VD01 to their own needs while USB 3.0 and USB 2.0 ports, a 6-in-1 memory card reader (SD/SDHC/MS/MS Pro/xD/MMC) and eSATA port provide greater external expansion capabilities for perfect palm-sized energy-efficient computing.
