Processor
| Processor cache |
2 MB |
| Processor lithography |
22 nm |
| Thermal Design Power (TDP) |
17 W |
| Maximum number of PCI Express lanes |
1 |
| Processor codename |
Ivy Bridge |
| Memory clock speeds supported by processor |
1333, 1600 MHz |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
Y |
| PCI Express configurations |
1x16, 2x8, 1x8+2x4 |
| Tjunction |
105 °C |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
15 |
| Processor operating modes |
64-bit |
| Processor socket |
BGA 1023 |
| Processor cores |
2 |
| Processor frequency |
1.5 GHz |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM, DDR3L-SDRAM |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Maximum internal memory supported by processor |
32 GB |
| Processor cache type |
Smart Cache |
| PCI Express slots version |
2.0 |
| Number of processors installed |
1 |
| Stepping |
P0 |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
31 mm |
| Processor ARK ID |
72061 |
| Processor code |
SR109 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Smart Cache |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE4.1, SSE4.2 |
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
22 nm |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Bluetooth version |
4.0 |
| Bluetooth |
Y |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
Y |
Memory
| Memory clock speed |
1333 MHz |
| Memory layout (slots x size) |
1 x 2 GB |
| Memory slots |
1 |
| Maximum internal memory |
8 GB |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
Packaging content
| Drivers included |
Y |
| Keyboard supplied |
N |
| Handheld remote control |
Y |
| Display included |
N |
| Mouse included |
N |
Graphics
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter base frequency |
350 MHz |
| On-board graphics adapter dynamic frequency (max) |
1000 MHz |
| Number of displays supported (on-board graphics) |
3 |
| On-board graphics adapter family |
Intel HD Graphics |
| On-board graphics adapter |
Y |
Storage
| Hard drive capacity |
500 GB |
| Hard drive speed |
5400 RPM |
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO, SD, SDHC, SDXC, xD |
| Total storage capacity |
500 GB |
| Card reader integrated |
Y |
| Storage media |
HDD |
| Hard drive interface |
Serial ATA III |
| Number of hard drives installed |
1 |
| Hard drive size |
2.5 " |
Ports & interfaces
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
N |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
Other features
| Number of hard drives supported |
1 |
| Cooling type |
Active |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel NM70 Express |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
5 GT/s |

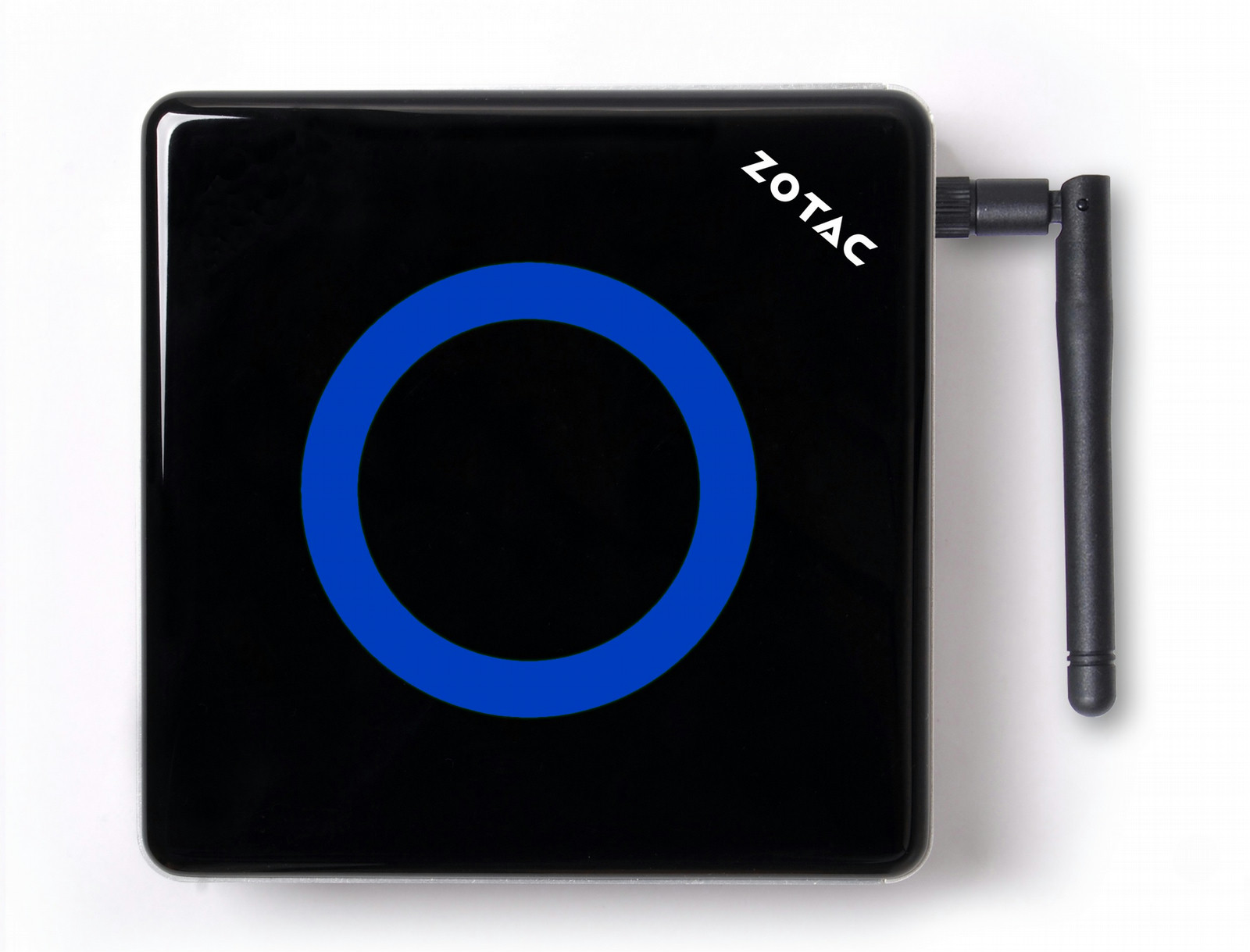

ZBOX nano ID62, Intel 1.5 GHz Dual-Core, NM70 Express, Intel HD Graphics, 2GB DDR3, 500GB (5400rpm), LAN, WiFi b/g/n, BT 4.0, HDMI, DP, 2x USB 3.0, MMC/SD/SDHC/SDXC/MS/MS Pro/xD, IR
Details
Experience the power of Intel’s Ivy Bridge architecture in a compact form factor with the ZOTAC ZBOX nano ID62 Plus mini-PC. Powered by an Intel Processor, the ZOTAC ZBOX nano ID62 Plus takes CPU performance to the next level with desktop-class processing power that sips miniscule amounts of energy.
Integrated Intel graphics enable the ZOTAC ZBOX nano ID62 Plus mini-PC to simultaneously drive dual independent displays via HDMI and DisplayPort for superior productivity capabilities from the mini-PC. Space for a 2.5-inch hard drive and a 204-pin DDR3-1600 SO-DIMM slot enables users to customize the internals of the ZOTAC ZBOX nano ID62 Plus to their own needs – a 500GB hard drive and 2GB of DDR3-1600 are included - while USB 3.0, USB 2.0 ports and a 7-in-1 memory card reader (SD/SDHC/SDXC/MS/MS Pro/xD/MMC) provide greater external expansion capabilities for perfect energy-efficient computing.
