Processor
| Processor lithography |
22 nm |
| Thermal Design Power (TDP) |
17 W |
| Maximum number of PCI Express lanes |
1 |
| Processor codename |
Ivy Bridge |
| Memory clock speeds supported by processor |
1333, 1600 MHz |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
Y |
| PCI Express configurations |
1x16, 2x8, 1x8+2x4 |
| Integrated 4G WiMAX |
Y |
| Tjunction |
105 °C |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
18 |
| Processor operating modes |
64-bit |
| Processor socket |
BGA 1023 |
| Stepping |
L1 |
| Processor frequency |
1.8 GHz |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM, DDR3L-SDRAM |
| Bus type |
DMI |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Maximum internal memory supported by processor |
32 GB |
| Processor cache type |
Smart Cache |
| PCI Express slots version |
2.0 |
| Number of processors installed |
1 |
| Processor boost frequency |
2.7 GHz |
| Processor cache |
3 MB |
| Processor cores |
2 |
Processor special features
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Smart Connect Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
31 mm |
| Processor ARK ID |
72055 |
| Processor code |
SR0XL |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel® Rapid Start Technology |
N |
| Intel® Smart Response Technology |
N |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Smart Cache |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel Enhanced Halt State |
Y |
| Intel® Secure Key |
Y |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Identity Protection Technology version |
1.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Supported instruction sets |
AVX |
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
22 nm |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel Clear Video Technology for MID |
N |
Graphics
| On-board graphics adapter ID |
0x166 |
| Discrete graphics adapter model |
Not available |
| On-board graphics adapter base frequency |
350 MHz |
| On-board graphics adapter dynamic frequency (max) |
1100 MHz |
| Number of displays supported (on-board graphics) |
3 |
| On-board graphics adapter family |
Intel HD Graphics |
| On-board graphics adapter |
Y |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Bluetooth version |
4.0 |
| Wi-Fi |
Y |
| Bluetooth |
Y |
| Cabling technology |
10/100/1000Base-T(X) |
Memory
| Memory clock speed |
1600 MHz |
| Memory layout (slots x size) |
1 x 4 GB |
| Memory slots |
1 |
| Maximum internal memory |
8 GB |
| Internal memory type |
DDR3-SDRAM |
| Internal memory |
4 GB |
Packaging content
| Drivers included |
Y |
| Keyboard supplied |
N |
| Mouse included |
N |
| Display included |
N |
Storage
| Hard drive capacity |
500 GB |
| Hard drive speed |
5400 RPM |
| Compatible memory cards |
Memory Stick (MS), MMC, SD, SDHC, SDXC, xD |
| Total storage capacity |
500 GB |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA III |
| Number of hard drives installed |
1 |
| Hard drive size |
2.5 " |
| Storage media |
HDD |

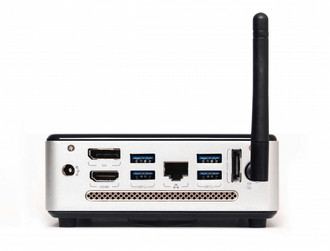

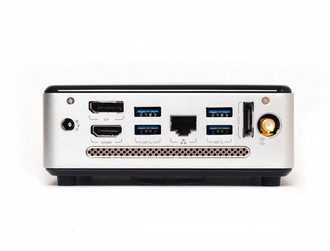

Ports & interfaces
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
N |
| DisplayPorts quantity |
1 |
Other features
| Number of hard drives supported |
1 |
| Cooling type |
Active |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel HM77 Express |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
5 GT/s |

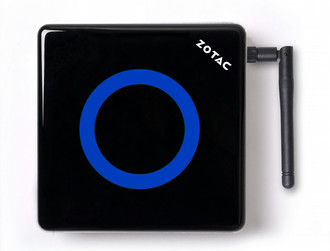

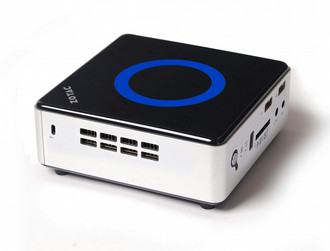

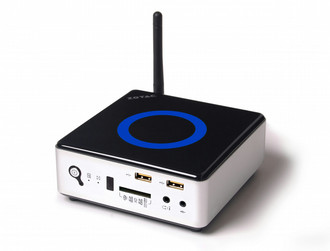

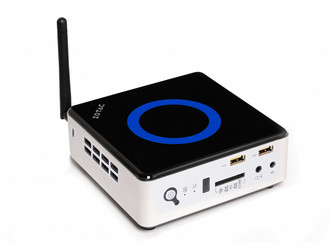

ZBOX nano ID64 Plus, i5-3337U, HM77 Express, HD 4000 Graphics, 4GB DDR3, 500GB (5400rpm), SATAIII, Wi-Fi b/g/n, Bluetooth 4.0, HDMI, DP, 4x USB 3.0, MMC/SD/SDHC/SDXC/MS/MS Pro/xD, Integrated IR receiver
Experience the power of high-performance 3rd Generation Intel Core processors with the palm-sized ZOTAC ZBOX nano with Intel HD Graphics 4000. By fusing an energy-efficient and powerful 3rd Generation Intel Core processor with the palm-sized form factor, the ZOTAC ZBOX nano with Intel HD Graphics 4000 delivers an unmatched combination of size and performance that is perfect for everyday work and casual use.
Intel HD Graphics 4000 graphics processing enhances the ZOTAC ZBOX nano with Intel QuickSync technology for lightning-fast video conversions and Intel ClearVideo HD technology for smooth high-quality Blu-ray 3D playback capabilities. An exclusive ZOTAC nanoRAID storage accessory included with the ZOTAC ZBOX nano with Intel HD Graphics 4000 enables users to harness the lightning-fast performance of two mSATA SSD* modules for superior performance in RAID 0 or enhanced data security with RAID 1.
*mSATA SSDs not included.
