Other features
| Hard drive size |
2.5 " |
| Number of processors installed |
1 |
| Processor system buses supported |
667 MHz |
Motherboard
| Supported processor frequency (max) |
1.66 GHz |
Storage
| Number of storage drives supported |
1 |
| Compatible memory cards |
Memory Stick (MS), MMC, MS PRO, SD, SDHC |
| Card reader integrated |
Y |
Processor
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| Processor cores |
2 |
| Processor frequency |
1.66 GHz |
Processor special features
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel 64 |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
Ports & interfaces
| S/PDIF out port |
Y |
| eSATA ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Additionally
| Graphics |
GMA 3150 |
| On/Off switch |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

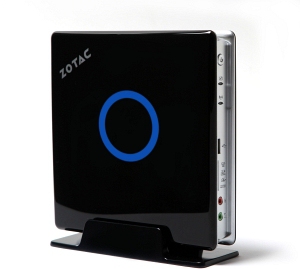

ZBOX SD-ID10 - Atom D510
Take the first step to living green with the eco friendly and energy-efficient ZOTAC ZBOX SD-ID10 mini-PC powered by Intel Atom technology combined with Intel Graphics Media Accelerator 3150 graphics. The ZOTAC ZBOX SD-ID10 mini-PC delivers phenomenal performance and compatibility for a full Microsoft Windows 7 experience with Aero user interface while maintaining best-in-class energy-efficiency.
The ZOTAC ZBOX SD-ID10 mini-PC is easy to master with only two thumb screws in place to unlock the internal expansion capabilities. Inside the ZOTAC ZBOX SD-ID10 mini-PC is space for a 2.5-inch SATA hard drive and 200-pin DDR2 DIMM modules while USB 2.0, eSATA and a 6-in-1 memory card reader (SD/SDHC/MS/MS Pro/xD/MMC) provide external expansion.
