Technical details
| PTZ control (Pan/Tilt/Zoom) |
Y |
| Tilt angle |
-100 - 100 ° |
| ITU-supported standards |
H.323 |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| Component video (YPbPr/YCbCr) in |
2 |
| VGA (D-Sub) ports quantity |
2 |
| Microphone in |
Y |
| PC Audio in |
Y |
| HDMI ports quantity |
3 |
Video
| Video codecs |
H.261, H.263, H.263+, H.264, H.264HP |
| Megapixel |
5 MP |
| Optical zoom |
10 x |
Packaging content
| Handheld remote control |
Y |
Camera
| Focus adjustment |
Auto |
| Sensor type |
CMOS |
| Aperture range (F-F) |
1.8 - 2.2 |
Networking
| Supported network protocols |
IP, TCP, UDP, DHCP, Telnet, HTTP, PPPOE, NTP, SNMP |
| Ethernet LAN data rates |
100, 10 Mbit/s |
Management features
| Management protocols |
H.224, H.225, H.241, H.243, H.245, EDID, H.239, BFCP, H.460.18, H.460.19, LDAP, NTLM, TLS, SRTP |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Transfer rate (Mbps) |
100 Mbit/s |
1/2.5" CMOS, 1920×1080, 50dB, Fast Ethernet, 1800g, Grey

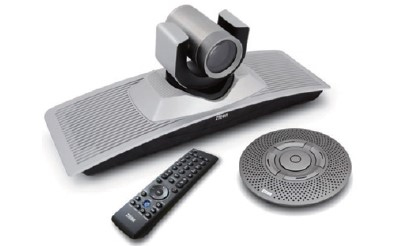

Introducing the ZTE T700 4MX (T700): a brand new, high definition video conferencing system with an integrated wide angle PTZ camera. The T700 is easy to deploy in any working environment to create a
more natural meeting experience. Delivering pin sharp 1080p HD video resolution and crystal clear high fidelity audio, the T700 is able to provide exceptional quality video and audio at an impressive price
and performance. The T700 is the best choice for small and medium business users, remote office locations and home tele-workers requiring videoconferencing.
<b>Outstanding Visual Communication Experience</b>
The T700 not only delivers video resolutions up to 1080p 30fps, but also supports 20p 60fps which offers superior motion handling at half the latency. In addition, the T700 supports dual 720p 30fps video streaming which enables the user to simultaneously send one HD video stream and one HD content stream for crisp high motion data sharing. With HD video resolution and hi-fidelity audio support, the T700 delivers a high quality and uncompromised videoconferencing experience.
<b>Easy Deployment</b>
The integrated design of the T700 ensures a simple installation for any user. Using the mounting brackets provided, the T700 can be installed in a variety of locations including wall mounting or, on top or below a free-standing display. With an easy to use graphically driven menu system the T700 is very simple to
operate and maintain. Easy deployment and ease of use ensure that the T700 videoconferencing system can be used effectively in any meeting environment.
<b>Superior Call Quality</b>
In order to maintain superior video and audio quality in every call across the most challenging and variable of network environments - the T700 uses a range of sophisticated management tools to automatically, and dynamically, adapt to network conditions. The T700 delivers rock solid images and crystal clear audio to ensure that each meeting is natural and productive as possible - every time.
