Technical details
| PTZ control (Pan/Tilt/Zoom) |
Y |
| Tilt angle |
-100 - 100 ° |
| ITU-supported standards |
H.323 |
Video
| Video codecs |
H.261, H.263, H.263+, H.264, H.264HP |
| Megapixel |
5 MP |
| Optical zoom |
10 x |
Ports & interfaces
| HDMI ports quantity |
3 |
| Component video (YPbPr/YCbCr) in |
2 |
| VGA (D-Sub) ports quantity |
2 |
| Microphone in |
Y |
Networking
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Supported network protocols |
IP, TCP, UDP, DHCP, Telnet, HTTP, PPPOE, NTP, SNMP |
Packaging content
| Handheld remote control |
Y |
Camera
| Focus adjustment |
Auto |
| Sensor type |
CMOS |
| Aperture range (F-F) |
1.8 - 2.2 |
Management features
| Management protocols |
H.224, H.225, H.241, H.243, H.245, EDID, H.239, BFCP, H.460.18, H.460.19, LDAP, NTLM, TLS, SRTP |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Transfer rate (Mbps) |
100 Mbit/s |
1/2.5" CMOS, 1920×1080, 50dB, Fast Ethernet, 1800g, Grey

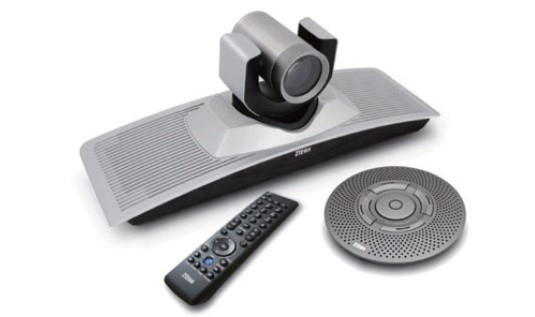

Introducing the ZTE T700 2M: a brand new, high definition video conferencing system with an integrated wide angle PTZ camera. The T700 2M is easy to deploy in any working environment to create a more natural meeting experience. Delivering pin sharp 720p HD video resolution and crystal clear high fidelity audio, the T700 2M is able to provide exceptional quality video and audio at an impressive price and
performance. The T700 2M is the best choice for small and medium business users, remote office locations and home tele-workersrequiring videoconferencing.
<b>Outstanding Visual Communication Experience</b>
The T700 2M enables the user to simultaneously send one 720p30 HD video stream and one XGA/WXGA content stream for data sharing. With HD video resolution and hi-fidelity audio support, the T700 2M delivers a high quality and uncompromised videoconferencing experience.
<b>Easy Deployment</b>
The integrated design of the T700 2M ensures a simple installation for any user. Using the mounting brackets provided, the T700 2M can be installed in a variety of locations including wall mounting or, on top or below a free-standing display. With an easy to use graphically driven menu system the T700 2M is very simple to operate and maintain. Easy deployment and ease of use ensure that the T700 2M videoconferencing system can be used effectively in any meeting environment.
<b>Superior Call Quality</b>
In order to maintain superior video and audio quality in every call across the most challenging and variable of network environments - the T700 2M uses a range of sophisticated management tools to automatically, and dynamically, adapt to network conditions. The T700 2M delivers rock solid images and crystal clear audio to ensure that each meeting is natural and productive as possible - every time.
