Data transmission
| MAC address table |
16000 entries |
| Switching capacity |
20 Gbit/s |
| Throughput |
14.9 Mpps |
Networking
| VLAN support |
Y |
| IGMP snooping |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Security
| MAC address filtering |
Y |
| Access Control List (ACL) |
Y |
Management features
| Web-based management |
Y |
| MIB support |
Telnet CLI, SNMP v1, v2c, v3 |
| Quality of Service (QoS) support |
Y |
Ports & interfaces
| Combo SFP ports quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Performance
| Packet buffer memory |
0.448 MB |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Y |

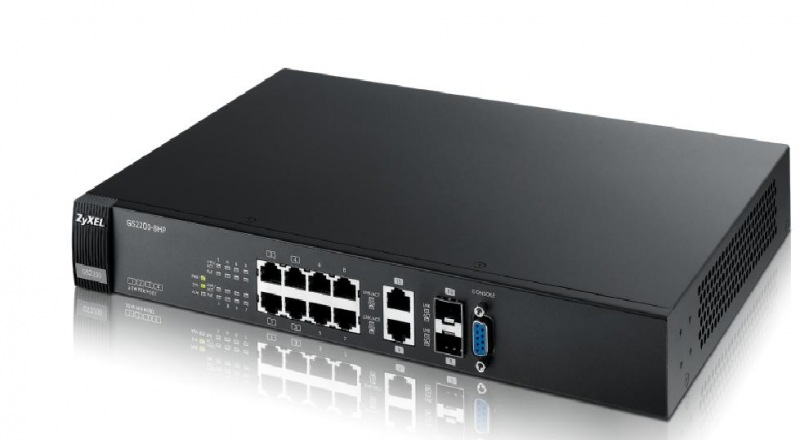

GS2200-8HP - 8-port GbE L2 PoE Switch, 8x 10/100/1000BASE-T PoE, 2x Dual Personality GbE Ports, 230W
- Comprehensive L2 switching features
- 20, 56 and 100 Gbps non-blocking switch fabric (GS2200-8/8HP, GS2200-24/24P and GS2200-48)
- 2/4 dual-personality (RJ-45/SFP) GbE interfaces
- Port security and enhanced 802.1X port authentication
- MAC freeze and intrusion lock
- 8 IEEE 802.1p hardware priority queues
- WFQ, WRR and SPQ queuing algorithms
- IEEE 802.3at PoE Plus support (GS2200-8HP)
- IEEE 802.3af PoE support (GS2200-8HP/24P)
- PoE power consumption mode for enhanced energy efficiency (GS2200-8HP/24P)
- Dual-speed (100/1000 Mbps) fiber connectivity (GS2200-8/8HP)
- IPv6 Ready Logo approved
The ZyXEL GS2200 Series is a line of Gigabit L2 switches designed to provide high-speed Gigabit connectivity, guaranteed access security, and advanced traffic prioritization and monitoring features for businesses. It consists of three Gigabit switches, providing 8/24/44 Gigabit Ethernet ports (GS2200-8/24/48), and two Gigabit PoE switches, providing 8/24 Gigabit PoE ports (GS2200-8HP/24P). The complete GS2200 Series comes with 2/4 dual-personality GbE interfaces for added deployment flexibility, while the GS2200-48 comes with two additional Gigabit open SFP slots for bandwidth-intensive applications.
