Management features
Multicast support |
Y |
MIB support |
RFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2233, RFC 2358, RFC 2674, RFC 2819, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293 |
System event log |
Y |
Quality of Service (QoS) support |
Y |
Web-based management |
Y |
Data transmission
MAC address table |
16000 entries |
Switching capacity |
20 Gbit/s |
Throughput |
15 Mpps |
Operational conditions
Heat dissipation |
32.22 BTU/h |
Networking
Port mirroring |
Y |
Broadcast storm control |
Y |
VLAN support |
Y |
IGMP snooping |
Y |
Auto MDI/MDI-X |
Y |
Rate limiting |
Y |
Link aggregation |
Y |
Spanning tree protocol |
Y |
Flow control support |
Y |
DHCP client |
Y |
10G support |
N |
Ports & interfaces
Console port |
RJ-45 |
Basic switching RJ-45 Ethernet ports quantity |
10 |
DC-in jack |
Y |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (copper) ports quantity |
8 |
Combo SFP ports quantity |
2 |
Security
SSH/SSL support |
Y |
MAC address filtering |
Y |
Access Control List (ACL) |
Y |
Performance
Packet buffer memory |
1.5 MB |
Protocols
Management protocols |
SNMP, RMON, NTP |
Supported network protocols |
IGMP, DHCP |
Design
Safety |
LVD, BSMI |
Rack mounting |
Y |
Power
Power consumption (max) |
9.45 W |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
N |

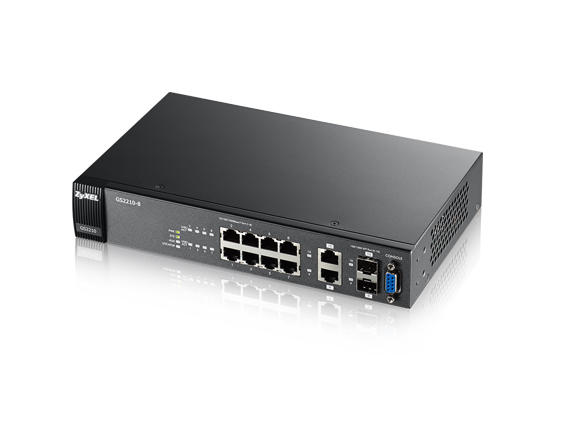

ZyXEL GS2210-8. Switch type: Managed network switch, Switch layer: L2, MIB support: RFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2233, RFC 2358, RFC 2674, RFC 2819, . Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Console port: RJ-45. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s, Throughput: 15 Mpps. Security algorithms: 802.1x RADIUS,SSH,SSL/TLS
