Performance
| Channel bandwidth |
80 MHz |
| Receiver sensitivity |
-102 dBm |
| VLAN support |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wireless isolation |
Y |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Wi-Fi Multimedia (WMM)/(WME) |
Y |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3au, IEEE 802.3az, IEEE 802.3u |
| Certification |
FCC part 15C, \nFCC part 15E, \nETSI EN 300 328, \nEN 301 893,\nLP0002\nFCC part 15B, \nEN 301 489-1,\nEN 301 489-17,\nEN55022,\nEN55024,\nEN61000-3-2/-3, \nBSMI CNS13438\nEN 60950-1, \nIEC 60950-1,\nBSMI CNS14336-1 |
| Modulation |
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
Design
| Placement |
Ceiling, Wall |
| Internal |
N |
Security
| Security algorithms |
802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, SNMP, SSH, WEP, WPA, WPA2-Enterprise, WPA2-PSK |
| SSID Broadcast on/off |
Y |
| Number of SSID support |
16 |
| MAC address filtering |
Y |
Weight & dimensions
| Depth |
191.7 mm |
| Weight |
445 g |
| Width |
203.9 mm |
| Height |
34.7 mm |
| Package depth |
235 mm |
| Package weight |
1210 g |
| Package width |
240 mm |
| Package height |
100 mm |
Antenna
| Antenna gain level (max) |
5 dBi |
Power
| Power over Ethernet (PoE) |
Y |
Operational conditions
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
10 - 90% |
Additionally
| Colour of product |
White |
| Transfer rate (Mbps) |
1300 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Operating temperature range (T-T) |
0 - 50 °C |

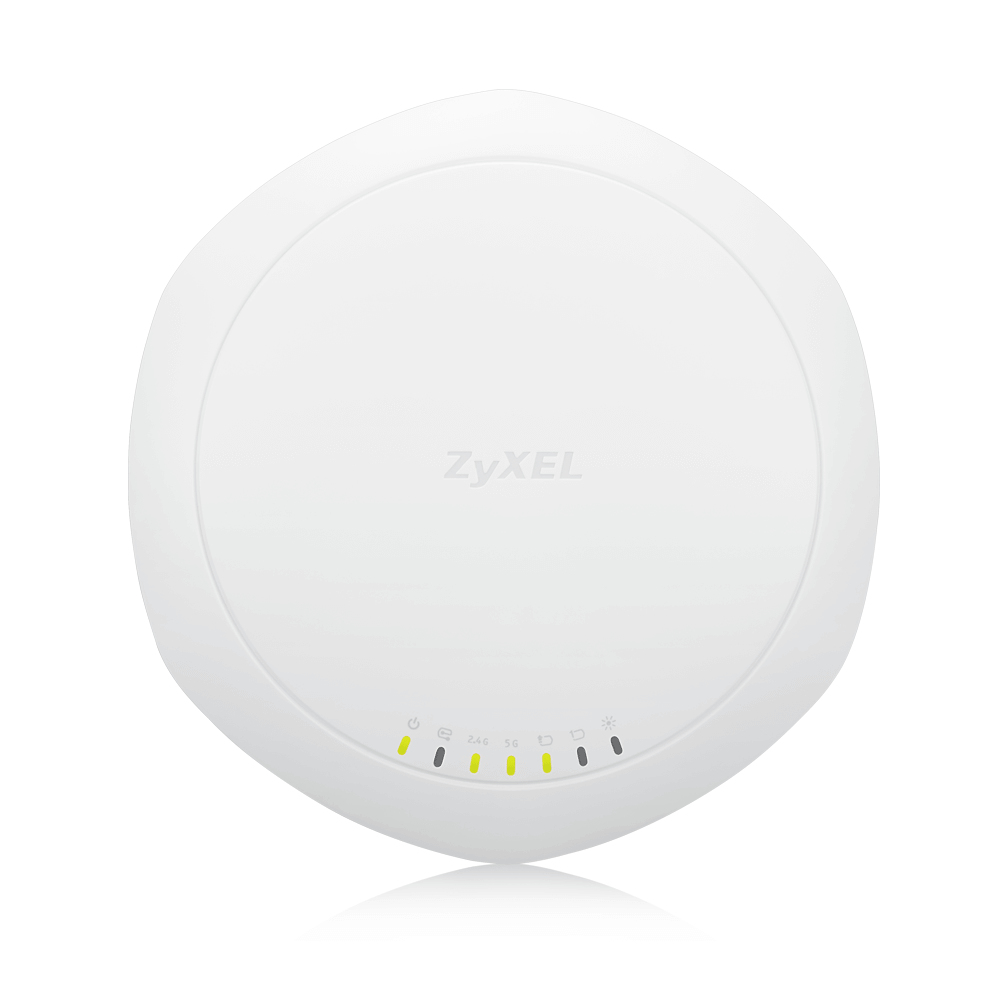

802.11ac Dual-Radio Dual Mount PoE Access Point
Best interior Wi-Fi performance in style
Struggling between performance and environment cohesion when deploying business wireless APs is in past. The stylish exterior of NWA1120 series is suitable for any interior that not only outperforms but also blends into the interior better as well prevents equipment theft.
Optimize for what you need
To create a thoroughly enhanced Wi-Fi experience, NWA1120 series made a big move on optimized antennas and RF design via fine-tune software and innovative hardware. Featuring with DCS and load-balance, NWA1120 series delivers smooth and superior Wi-Fi experience in workplaces.
Blending multi-operation flexibility with practical business features
NWA1120 series provides repeater/root-AP mode compatibility with Zyxel Unified Pro and Unified APs, that users can extend wireless connectivity via enterprise grade WDS to difficult cabling locations without the bother of troublesome cabling. Also, as an ideal solution, NWA1120 series offers an array of practical features like multiple SSID and solid Wi-Fi security.
Setup and forget
The refreshed NWA1120 series features streamline controller-less deployment. Out of the box and finish three steps configuration with ZON then NWA1120 series capable of operating autonomously without extra computer or special management tool as well as allowing administrator easy monitor via any SNMP tool in hand, even not a networking expert can handle it easily.
