Protocols
| Management protocols |
SUA/Multi-NAT, VPN (IPSec, PPTP, L2TP) |
Technical details
| Antenna gain level (max) |
2 dBi |
| Compliance industry standards |
IEEE 802.11g |
Security
| MAC address filtering |
Y |
| Firewall security |
Y |
Networking
| Networking features |
G.993.1 VDSL, G.993.2 VDSL2 |
Additionally
| Wireless connections |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

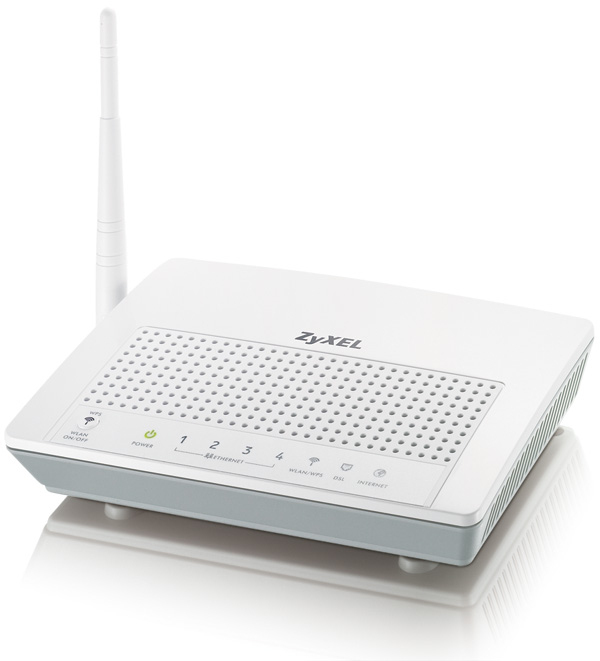

P-870HW Series 802.11g Wireless VDSL2 4-port Gateway
High-speed VDSL2 Gateway for Triple Play Services
- Extremely high connection speed
- 802.11g Wireless with One-Touch Intelligent Security Technology (OTIST)
- Media Bandwidth Management (MBM) QoS
- Robust SPI Firewall Protection TR-069 Support
VDSL2 High-speed and High-performance Internet Access
VDSL2 is the next generation technology of VDSL, providing significantly higher bandwidth than other DSL technologies. It is designed to increase both of downstream and upstream rates as well as the reach over copper wires in order to fulfill more and more bandwidth-consuming applications in business and residential environment.
Through the bandwidth increased to 30MHz in DMT modulation, Trellis/Viterbi coding, echo cancellation and VLR technology, the P-870HW Series is capable of supporting high-speed VDSL2 downstream/upstream transmission to 100/100Mbps* over the existing copper lines. The P-870HW Series with VDSL2 technology provides Triple Play services such as voice, video, data, high definition television (HDTV) and interactive gaming, and leads the users to experience the completed and the brand-new home communication/ entertainment package services.
802.11g Wireless with OTIST Simple-secured Configuration
The P-870HW Series is compliant with the 802.11g wireless standard which allows data transmission speeds reach up to 54Mbps. Furthermore, ZyXEL's "One-Touch Intelligent Security Technology" (OTIST) automatically establishes the highest level of WPA-PSK security between the P-870HW Series and either a desktop or laptop computer. With the Seamless Security, the P-870HW Series guards and protects the end user from any outside threat.
Advanced Media Bandwidth Management QoS
By the sophisticated Media Bandwidth Management (MBM) application features, the P-870HW Series equips with the advanced QoS algorithms and packet prioritization and then ensures the high-quality delivery of delay-sensitive video and voice services. With the MBM QoS, end users can enjoy the video-on-demand, on-line gaming, and FTP traffic with high-quality performance in the household.
Robust SPI Firewall Protection
The ICSA-certified ZyNOS operating system ensures state-of-art firewall performance and robust security from the P-870HW Series. Based on Stateful Packet Inspection (SPI), DoS (Denial of Service) and DDoS features, the P-870HW Series provides the first line defense against hackers, network intruders, and other harmful threats.
TR-069 Remote Manageability
Compliant with DSL's Forum's TR-069 Remote Management Specification, the P-870HW Series is highly manageable with the default Auto-Configuration Server (ACS) for auto-configuration and dynamic service provisioning, software/firmware image management, status and performance monitoring and diagnostics. By these provision value-added services, the P-870HW Series with TR-069 helps VDSL service provider reduce operation effort as well as enhance customer satisfaction.
