Networking
| Cabling technology |
10/100/1000Base-T |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Power over Ethernet (PoE) |
Y |
| Compliance industry standards |
802.3at |
Power
| Input voltage |
100 - 240 V |
| Power consumption (typical) |
42.1 W |
| Input frequency |
50 / 60 Hz |
| Input current |
1.5 A |
Weight & dimensions
| Dimensions (WxDxH) |
155 x 74 x 36 mm |
| Package length |
155 mm |
| Weight |
396 g |
| Package width |
202 mm |
| Package height |
69 mm |
Features
| Safety |
EN 60950-1, CSA, EU RoHS |
| LED indicators |
Y |
| Certification |
FCC Part15 (Class B)\nCE EMC (Class B) |
Operational conditions
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 95% |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Operating temperature range (T-T) |
0 - 50 °C |

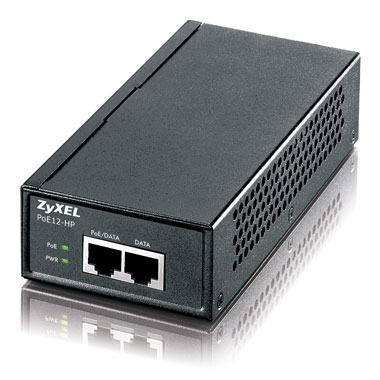

Single Port High Power IEEE 802.3at Power-over-Ethernet Injector, 1000Mbps, 30W
The ZyXEL PoE12 Series is a PoE injector designed to support the increasing power demands of the latest-generation N wireless Access Points (APs) as well as the pan, tilt or zoom functions of IP surveillance cameras. The PoE12 Series consists of two models: PoE-12 and PoE12-HP. The PoE-12 and PoE12-HP are single-port PoE injectors that deliver both power and data to other PoE devices via a single CAT-5 Ethernet cable without extra power supply. The PoE-12 enables 100Mbps data transmissions and provides power up to 15.4W, while the PoE12-HP allows data transmitted at 1000Mbps and delivers power up to 30W.
