Networking
| Voice features |
SIP (RFC 3261) v2\nSDP (RFC 2327)\nRTP/RTCP (RFC1889, 1890)\nEcho Cancellation: G.168\nVAD\nSilence Suppression\nCNG\nDynamic Jitter Buffer\nDTMF Detection & Generation\nRFC283\nFax Tone Detection & Pass-through\nModem Tone Detection & Pass-through\nT.38 FAX Relay\nCLID\nCall Waiting\nCall Forward\nThree way conference\nMWI\nFlash Hook Timer\nMultiple SIP Accounts |
| Networking features |
SUA/Multi-NAT, DHCP Server/Relay/Client, DNS Proxy, Dynamic DNS, UPnP |
Technical details
| Manageability features |
Command-line Interpreter (CLI)\nTelnet Remote Management\nSNMP\nBuilt-in diagnostic tool |
| Management platform |
Web-based |
| Upgrade type |
FTP/TFTP |
| DSL specification |
ANSI T1.413 Issue 2, G.dmt, G.lite, ADSL2 G.dmt.bis (G.992.3), ADSL2 G.lite.bis (G.992.4), ADSL2+ (G.992.5), Reach Extended ADSL |
| Interface |
External |
| Compliance industry standards |
IEEE 802.1d, IEEE 802.11g/11b, IEEE 802.1x |

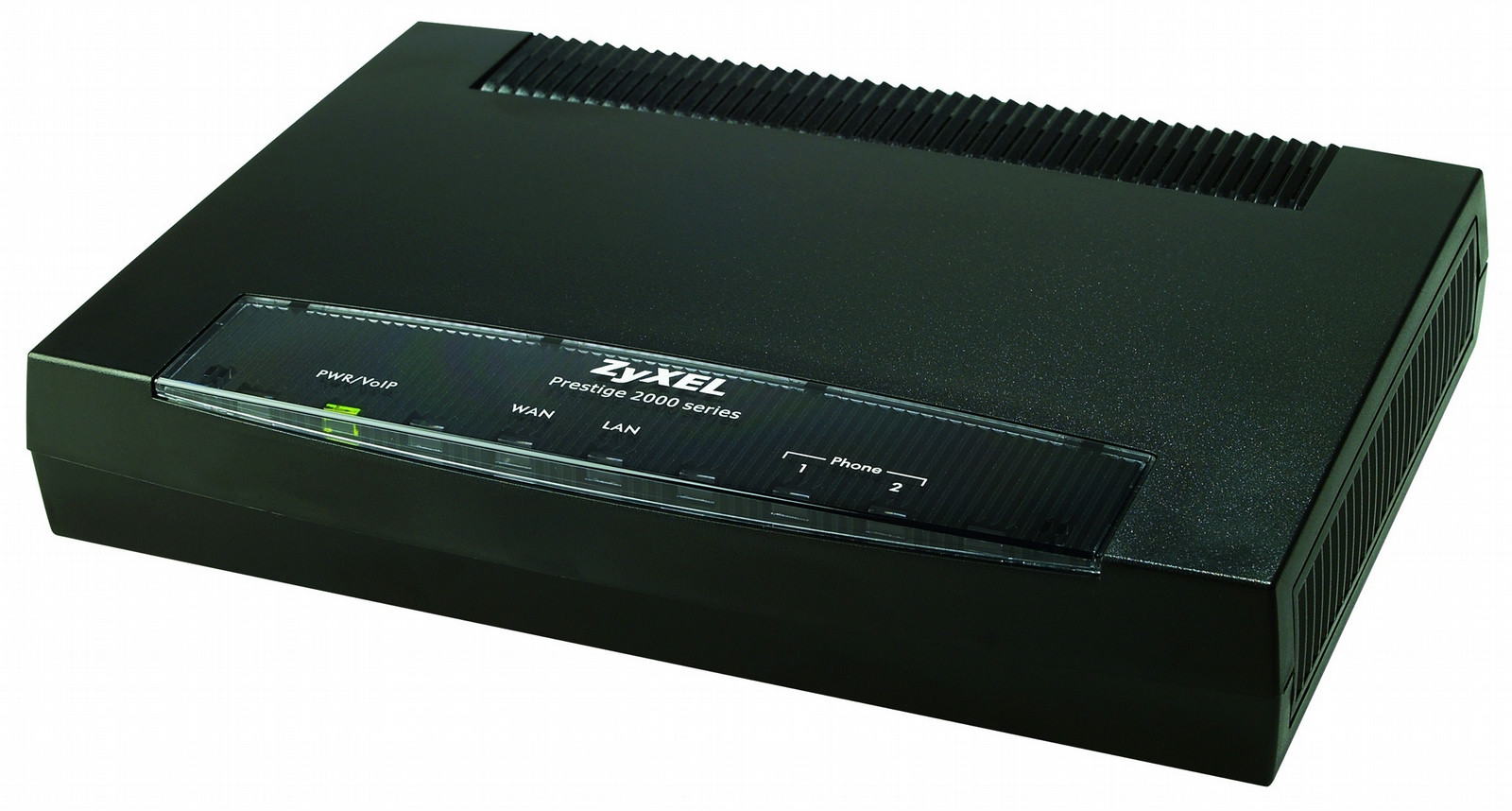

Prestige 2602HWL Compact ADSL2+ VoIP IAD
All-in-one ADSL VoIP IAD
ZyXEL P-2602H/HW/HWL Gateway Series is an integrated Internet access
device supporting high-speed ADSL, ADSL2 and ADSL2+ standard over
existing copper lines. Combining convenient Wireless AP (optional), Ethernet switch, Firewall and VoIP gateway features, it is indispensable for homes and small offices with limited space and technical expertise.
Flexible Phone Features
With two built-in phone ports and flexible calling features, ZyXEL P-
2602H/HW/HWL not only empowers ITSP to enjoy better profitability from
flexible phone number assignment, but also offers unprecedented flexibility for users to talk unlimitedly through high-speed broadband connection.
Advanced Security Features
Based on Stateful Packet Inspection and Denial of Service (DoS) technologies, the P-2602H/HW/HWL provides state-of-the-art firewall performance and robust protection against hackers, network intruders and
other malign threats. Furthermore, the standard-based IPSec VPN ensures
secured data transmission for site-to-site and remote access deployment.
Since data sent by P-2602H/HW/HWL over the Internet can be encrypted,
users is free to use the ADSL2/2+ line to replace private leased lines or frame relay networks, allowing global interconnectivity at minimal expense.
Lifeline Support (P-2602HWL)
“PSTN Lifeline” feature allows users to switch to the standard phone line in case of power or Internet outage. Thanks to the friendly design of P-2602HWL, VoIP service subscribers can place calls just like using a PSTN phone.
