Networking
| MAC address table |
256 entries |
| ATM features |
8 PVC, RFC 1483/2684(AAL5), VC/LLC, UBR, CBR, VBR-nrt, UNI 3.1/4.0 PVC, ITU-T 1.610 F4/F5 OAM |
Security
| Firewall security |
PAP, CHAP |
| MAC address filtering |
Y |
Protocols
| Routing protocols |
IP |
| Data link protocols |
FTP/TFTP |
| Management protocols |
SUA, SNMP MIB |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
Multi-NAT |
Other features
| Connectivity LEDs |
Y |
| Remote administration |
CLI |
| Networking features |
Fast Ethernet |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Reset button |
Y |
| Web-based management |
Y |
DSL features
| DSL specification |
POTS (G.992.1 Annex A), ADSL2 G.dmt.bis(G.992.3), ADSL2+ (G.992.5), ADSL(RE ADSL) |
| xDSL connection type |
ADSL |
Ethernet LAN features
| Ethernet LAN data rates |
10, 100 Mbit/s |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
1 |

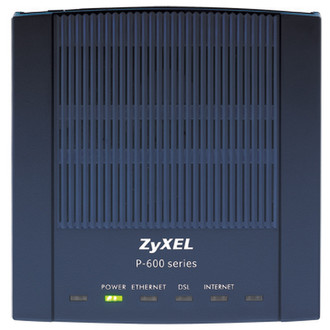

P-660-D1, ADSL2/ADSL2+, POTS, RJ-11/RJ-45, Fast Ethernet, Black
Compact, Flexible, Easy to Install
- ADSL2+ Internet Access;
- UPnP Support;
- Zero Configuration;
- MAP (Multimedia Auto Provisioner).
Benefits
Higher-speed Internet Access
ZyXEL’s P-660R Compact Series router complies with ADSL worldwide standards. With speeds of up to 12Mbps (ADSL2) or 24Mbps (ADSL2+), the P-660R Series offers higher data transfer rates and better bandwidth than traditional ADSL enabled gateways. Users can enjoy not only high-speed ADSL services, but also broadband multimedia applications such as interactive gaming, video streaming, and real-time audio much easier than before.
UPnP Support
The P-660R Compact Series supports UPnP discovery and UPnP NAT traversal. Using the standard TCP/IP protocol, the P-660R Compact Series can join a network, obtain an IP address, convey its capabilities, and learn about other devices on the network.
Zero Configuration Support
Thanks to ZyXEL’s exclusive Zero Configuration technology, quick and easy installation allow users to hook up a DSL connection in minutes.
Compact Size
The P-660R Compact Series benefits from its smaller size. It’s compact, flexible, easy to install. It’s cooler in both operations and appearance.
