Ports & interfaces
USB port |
Y |
RJ-11 ports quantity |
2 |
DC-in jack |
Y |
Wireless LAN features
Top Wi-Fi standard |
IEEE 802.11n |
Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
WLAN data transfer rate (max) |
300 Mbit/s |
Wi-Fi band |
Single-band (2.4 GHz) |
Antenna
Antenna type |
External |
Antennas quantity |
2 |
Antenna gain level (max) |
3 dBi |
Ethernet LAN features
Ethernet LAN interface type |
Gigabit Ethernet |
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Protocols
DHCP server |
Y |
DHCP client |
Y |
DMZ support |
Y |
Management features
Web-based management |
Y |
Reset button |
Y |
Quality of Service (QoS) support |
Y |
Security
MAC address filtering |
Y |
Firewall security |
NAT, NAT ALGs |
Networking
Management protocols |
SNMP v1/v2c |
Routing protocols |
RIP-2, RIP-1 |
WAN connection
DSL WAN |
Y |
3G/4G USB modem compatibility |
Y |
Ethernet WAN |
Y |
Additionally
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
5 |
AC adapter bundled |
Y |

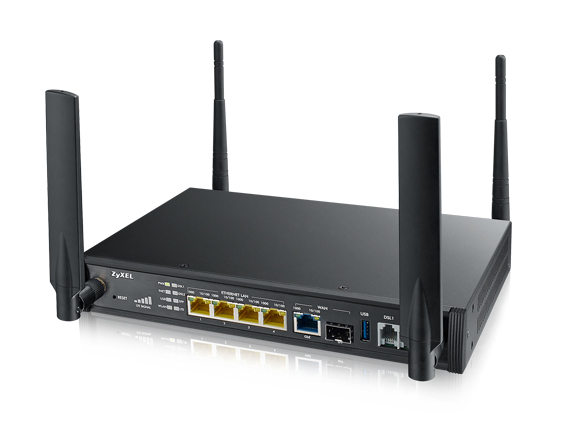

ZyXEL SBG3600-N. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: IEEE 802.11n, WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Routing protocols: RIP-1, RIP-2, Management protocols: SNMP v1/v2c. Antenna type: External, Antenna gain level (max): 3 dBi. Security algorithms: 64-bit WEP, 128-bit WEP, 802.1x RADIUS, AES, TKIP, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS, Firewall security: NAT, NAT ALGs
