Ports & interfaces
| DC-in jack |
Y |
| RJ-11 ports quantity |
1 |
Other features
| Frequency band |
2.4 GHz |
| Bandwidth (first) |
2.4 GHz |
| Mobile network connection |
N |
| xDSL connection |
Y |
| USB version |
2.0 |
| Input current |
1.5 A |
| USB ports quantity |
2 |
Antenna
| Antenna gain level (max) |
3 dBi |
| Antenna type |
External |
| Antennas quantity |
2 |
Security
| Firewall |
Y |
| MAC address filtering |
Y |
Wireless LAN features
| WLAN data transfer rate (max) |
300 Mbit/s |
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n |
Ethernet LAN features
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
Management features
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
Additionally
| AC adapter bundled |
Y |
| On/Off switch |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Ethernet LAN connection |
Y |
VDSL2, IEEE 802.11n, 2.4 GHz, 300 Mbps, 2 x USB, 4 x Gigabit Ethernet, IPv6
<b>G.vector to optimize performance and CAPEX</b>

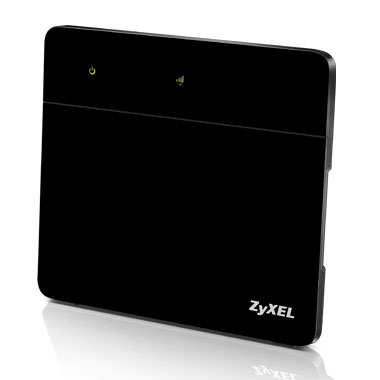

The ZyXEL VMG8324-B10A supports the Vectoring technology that eliminates cross-talk or interference
among different VDSL lines. With the mechanism, Vectoring significantly increases the bit rates to
compete with cable/fiber technology as well as to enlarge the service coverage without changing
the current infrastructure—a way to save cost significantly comparing to fiber-to-the-home (FTTH)
deployments, and CAPEX can also be optimized by the improved data rates and coverage without
upgrading the equipment.
<b>Combo WAN for simplified ISP logistics and optimized CAPEX</b>
With the ZyXEL VMG8324-B10A, there’s no need for service providers to invest on and replace new CPEs
at customer sites when customers migrate from ADSL2+ or VDSL2 to PON or LTE; all they need to do
is to unplug the DSL line, and then plug the Ethernet cable to the Ethernet WAN port as the existing
CPE VMG8324-B10A will be used to terminate the IP connections via the WAN interface. In most cases,
users can still connect with the original CPE to avoid replacing the unit due to the difference of physical
connections.
<b>802.11n technology for superior Wi-Fi performance and coverage</b>
The ZyXEL VMG8324-B10A features 802.11n technology to provide the ultimate solution for both speed
and coverage. With 802.11n wireless data rates of up to 300 Mbps, the VMG8324-B10A provides stable,
reliable wireless connections for high-speed data and multimedia usages. The 802.11n technology
empowered the device to eliminate dead zones and extend coverage while retaining backward
compatibility with any certified device.
<b>Quality of Service (QoS) support</b>
With QoS features, service providers can freely design their QoS policies and prioritize the missioncritical
services such as IPTV and VoIP based on their service plan offerings. This increases network
efficiency and productivity that enable service providers to offer a real multi-play solution meeting the
needs of residential users.
<b>TR-069 remote management</b>
The ZyXEL VMG8324-B10A incorporates the TR-069 standard management specifications for service
provider to manage and configure client devices remotely without end user intervention. This feature
offers a true “plug-and-play” experience while reducing deployment complexity to help saving operating
and maintenance costs for service providers.
