Networking
| MAC address table |
14000 entries |
Security
| Firewall security |
IPSec, L2TP, PPTP |
| MAC address filtering |
Y |
Protocols
| Routing protocols |
IP |
| Management protocols |
SNMP |
| VoIP protocols |
SIP v2, H.248 |
DSL features
| DSL specification |
G.992.1 Annex A, G.992.3 Annex A, Annex L, Annex M, G.992.5 Annex A, Annex M, G.994.1 G.hs, G.992.3, G.992.5, G.997.1, G.992.3/G.992.5 |
| xDSL connection type |
ADSL |
Power
| Power over Ethernet (PoE) |
Y |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Ethernet LAN features
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Filtering |
IP, DHCP, IGMP, NetBIOS |
| Ethernet LAN (RJ-45) ports quantity |
2 |

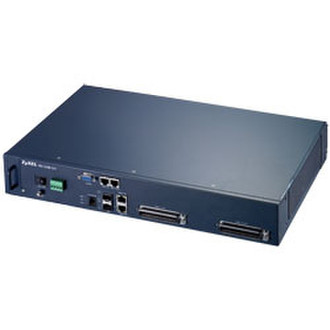

IES-1248-51V, 48-port, Gigabit Ethernet, MSAN, ADSL/VoIP
Reaching subscribers with high-bandwidth triple-play services
- Complete ADSL2/2+ standard compliance:
- ADSL2+ port bonding
- SIP v2 and H.248 v2 media gateway signaling
- Voice Codec of G.711 a/μ law, G.726, G.729 a/b and G.723.1
- Fax/Modem signal pass through
- Supplementary service support
- Local Dial available
- Loop Diagnostic
- SELT (Single End Loop Test)
- DELT (Dual End Loop Test)
- MLT (Metallic Loop Test)
- Test Out/Test in terminals
Temperature Harden and Friendly Remote-Installation Design
The ZyXEL IES-1248-51V can operate in the environment with temperature from -40°C to 65°C, which meets various Fiber-to-the-Node and Fiber-to-the-Curb environment conditions worldwide. A side-slip plug-in and pull-out mesh filter, which is cleanable and reusable, is equipped to make it dust-proof and suitable for open-air installations.
Moreover, the rotational speed of the fan module is automatically adjusted according to the system temperature. The feature not only extends the lifespan of the module, but also has lower audible noise, which is important if IES-1248-51V is installed in a residential neighborhood. The fan module is swappable in order to reduce the maintenance cost in the field.
Complete ADSL2+ Services
The IES-1248-51V provides state-of-the-art ADSL2+ connectivity to subscribers. The latest technologies like various line coding, power spectral mask fitting, dual latency path selection, loop diagnostic and power management capabilities, Seamless Rate Adaptation (SRA) and Impulse Noise Protection (INP) are all supported. Up to 24Mbps (downstream) and 2.3Mbps (upstream) per port facilitates high-bandwidth services such as streaming video, online gaming and IP TV. ADSL2+ port bonding is also provided for subscribers who need even more bandwidth or located with loop length longer than 5000 ft.
VoIP Media Gateway Embedded
The IES-1248-51V has a built-in POTS splitter and can act as the media gateway of a packet voice network. Through the communication with the softswitch or media gateway controller, IES-1248-51V digitalizes and encapsulates the POTS voice into VoIP packets and delivers them to the IP network with higher priority in SIP or H.248 signal protocols. Telco operators can provide voice over broadband (VoBB) service without changing existing customer premises network and keep the OAM&P as usual.
Sophisticated Features for Triple-Play Services
The IES-1248-51V comes with complete ATM and Ethernet QoS, as well as various IP QoS features (Packet classification/Rate Limitation/Queue Scheduling). The seamless QoS-mapping not only allows consistent and appropriate traffic treatment of packets, but also enables fulfillment of triple-play services.
The number of the supported multicast groups is 512, while each group can have 50 members. At least 30 multicast IGMP join/leave requests can be processed in one second and the maximum channel processing time is less than 250 ms. For security, anti MAC address spoofing, broadcast storm prevention, MAC count limiting and packet filtering features are provided. With these features provided, Telco operators can easily offer Triple-play services like high-speed Internet access, VoIP, Near VOD, Broadcast TV and TV on Demand.
