Other features
| Authentication method |
Internal User Database/Microsoft Windows Active Directory/External LDAP / RADIUS User Database/ZyWALL OTP (One Time Password)/Force User Authentication (Transparent Authentication) |
| Safety |
CSA International (ANS/UL60950-1,CSA60950-1, EN60950-1, IEC60950-1) |
| Electromagnetic compatibility |
FCC Part 15 Class B, CE-EMC Class B, C-Tick Class B, VCCI Class B |
| Networking features |
Ethernet / PPPoE / PPTP/Tagged VLAN (802.1Q) |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| ExpressCard slot |
Y |
Security
| VPN support |
IPSec VPN: \n- Encryptions (AES / 3DES / DES); \n- Authentication (SHA-1 / MD5); \n- Key Management (Manual Key / IKE); \n- Perfect Forward Secrecy (DH Group 1 / 2 / 5); \n- NAT over IPSec; \n- Dead Peer Detection / Replay Detection; \n- PKI (X.509);\n- Certificate Enrollment (CMP / SCEP); \n- Xauth Authentication; \n- L2TP Over IPSec Support.\nSSL VPN: \n- Clientless Secure Remote Access (Reverse Proxy Mode); \n- SecuExtender (Full Tunnel Mode); \n- Unified Policy Enforcement; \n- Supports Two Factor Authentication; \n- Customizable User Portal. |
| Content filtering |
URL Blocking, Keyword Blocking Exempt List (Blacklist and Whitelist) Blocks Java Applet, Cookies, Active X, Dynamic URL Filtering Database (Powered by BlueCoat) |
Data transmission
| VPN throughput |
60 Mbit/s |
| Firewall throughput |
150 Mbit/s |
Networking
| Number of VPN connections |
20000 |
| VPN tunnels quantity |
50 |
Protocols
| Management protocols |
HTTP, HTTPS, Console, Telnet, SSH, Web GUI, HTTP/FTP/SMTP/POP3/IMAP4 |
Additionally
| Wireless technologies |
Wired |

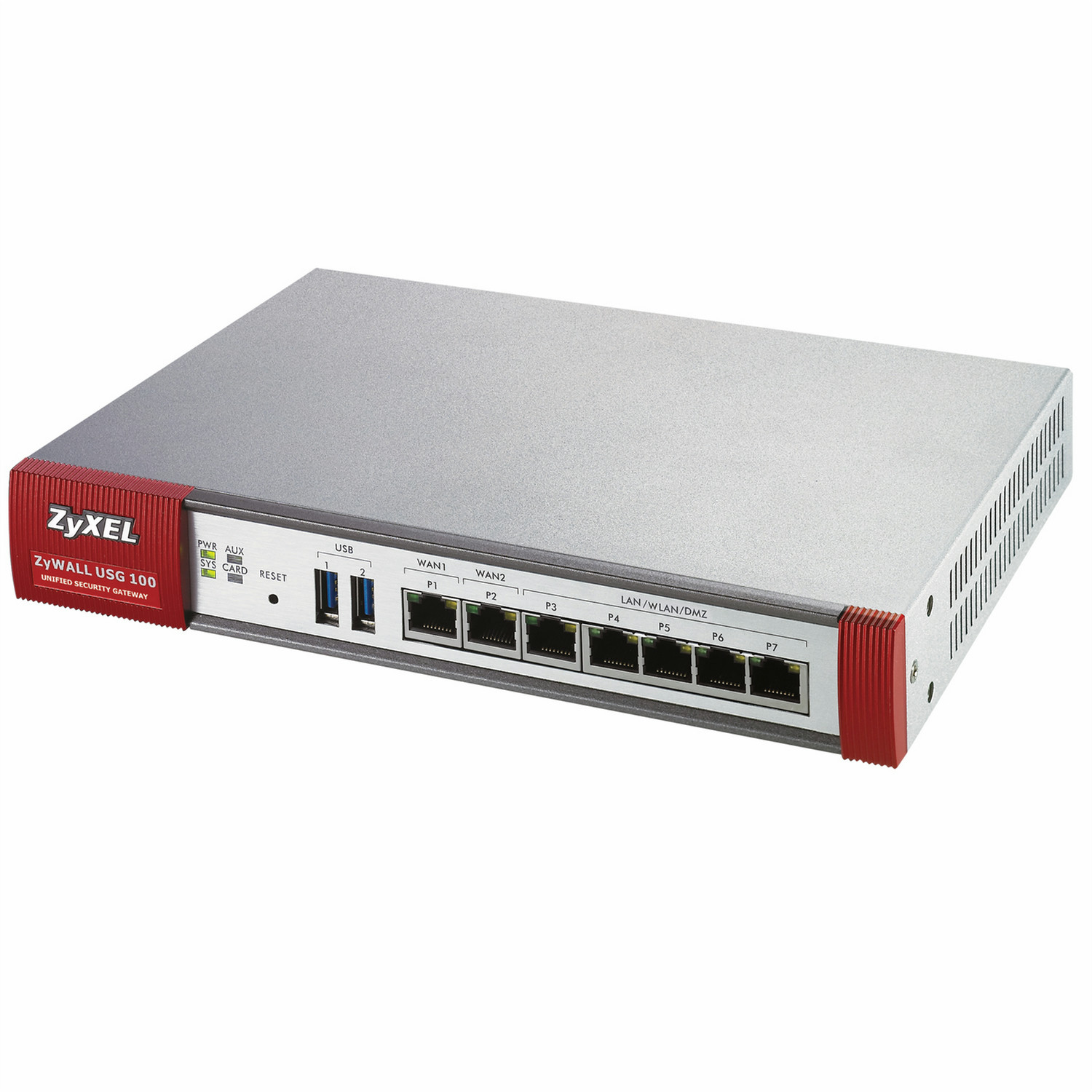

ZyWALL USG 100 Internet Security Appliance
The ZyWALL USG100 is a Unified Security Gateway designed to provide complete, enterprise-level advanced security solutions to Small and Home Office networks, recommended for up to 25 PC users. Its flexible configuration is designed to help network administrators efficiently set up, manage, and enforce network security policies.
The USG100 features an 180Mbps throughput ICSA certified SPI Firewall, and is designed with state of the art security features including a granular, easily manageable Content Filter; choice of ZyXEL or Kaspersky Anti-Virus; Anti-Spam; and IDP (Intrusion Detection and Prevention) for maximum network security. It also provides bandwidth management for QoS of VoIP, videoconferencing, and other important applications, as well as multiple-WAN Failover and Load Balancing. IPSec, SSL, and L2TP* VPN functionality allows telecommuters and home workers quick and easy access to corporate resources with most any device or network setup.
Built with powerful Integrated High Performance Security architecture designed for Gigabit connections, a VPN Throughput of 90Mbps, a UTM throughput of 24Mbps, up to 20,000 max sessions and 50 concurrent IPSec VPN tunnels, the USG100 has the power to monitor and protect even high-throughput networks without sacrificing performance. And with a 5 year, industry-leading hardware warranty, you’ll be able to count on your USG100 to watch over your network’s safety well into the future.
With 5x Gigabit LAN/DMZ and 2x Gigabit WAN interfaces you can load balance and failover multiple ISP links, allowing you to safeguard even the largest high-bandwidth environments.
