联网
| 流量控制支持 |
Y |
| 端口镜像 |
Y |
| 广播风暴控制 |
Y |
| VLAN支持 |
Y |
| IGMP侦听 |
Y |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 链路汇集 |
Y |
| IP路由 |
Y |
安全
| MAC（媒体存储控制）地址过滤 |
Y |
| SSH / SSL支持 |
Y |
| 存取控制清单(ACL) |
Y |
数据传输
| MAC 地址表 |
8192 entries |
| 交换容量 |
13.6 Gbit/s |
| 最大数据传输率 |
1 Gbit/s |
| VLAN 数量 |
256 |
端口 & 界面
| SFP/SFP+端口数量 |
2 |
| 基本交换 RJ-45 以太网端口数量 |
48 |
| Combo SFP 端口数量 |
2 |
| DC-IN插口 |
Y |
环境条件
| 运行温度范围（T - T） |
32 - 104 °F |

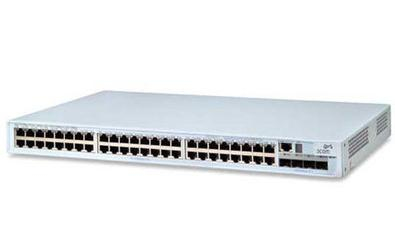

4500, 50 ports, 13.6 Gbps, RJ-45, 6.3 kg
Intelligent and Secure Voice-Ready Edge Connectivity
The 3Com® Switch 4500 family of managed, stackable/clusterable 10/100 Ethernet switches provides secure, flexible LAN connectivity and advanced voice-optimized features such as Power over Ethernet (PoE) and auto-voice VLAN and QoS.
The Switch 4500 family offers Layer 2 switching and dynamic Layer 3 routing, as well as robust security, Quality of Service (QoS) and management features to deliver intelligent edge connectivity for essential business applications. This makes the Switch 4500 ideal for medium businesses and small enterprises seeking to build a secure converged network.
This switch comes with a limited lifetime warranty. Also provided is Advance Hardware Replacement, with next business day shipment available in most regions.
Flexible and Scalable
The 3Com Switch 4500 PWR 50-Port has 48 10/100 Power over Ethernet ports and two dual-personality Gigabit ports. Each Gigabit port offers a choice of copper or fiber media: 1000BASE-T (via RJ45) or 1000BASE-X (via optional "SFP" Small Form-Factor Pluggable transceivers).
Stack this switch eight-high with other Switch 4500 devices and manage as a single IP addresss, or cluster as many as 32 mixed devices including Switch 5500G, 5500, 4500G, 4500, 4200G and 4210.
Dynamic Voice over IP
Unique auto-voice VLAN feature detects the presence of IP phones and dynamically assigns switch ports to the voice VLAN, enabling automated configuration and prioritization of VoIP traffic. This powerful feature helps ensure voice traffic quality, and minimizes the cost and complexity associated with adding or moving IP phones.
Advanced Security
Enterprise-class security features include IEEE 802.1X network login, SSH/SSL encrypted device login, Access Control Lists and RADIUS Authenticated Device Access (RADA), protecting mission-critical business applications.
Power over Ethernet
The Switch 4500 PWR 50-Port delivers Power over Ethernet (PoE). PoE provides electrical power and data connectivity over a single Ethernet cable— resulting in significant cost savings when deploying devices like IP phones, wireless access points and IP security cameras.
- Advanced access and distribution for medium businesses and small enterprises seeking to build a secure converged network
- Wirespeed non-blocking performance: aggregate switching capacity of up to 13.6 Gbps
- Layer 2 switching; dynamic Layer 3 routing increases performance and enhances network security
- Add switches to the stack/cluster when needed— without increasing management difficulty and expense— and manage all as a single entity
- Stack up to eight Switch 4500 units, or cluster 32 devices (Switch 4200G, 4210, 4500, 4500G, 5500 and 5500G)
- IEEE 802.1X network access control offers standards-based security combined with RADIUS authentication
- RADIUS Authenticated Device Access (RADA) provides authentication of attached devices via MAC address for an additional level of endpoint security
- Power over Ethernet delivers electrical power and data connectivity over a single Ethernet cable
- Automatic assignment of VoIP traffic to dedicated VLANs helps ensure that critical time-sensitive traffic gets the priority needed for quality communications
- Distribute aggregated links across stacked units for greater uplink resiliency
