内存参数
| 支持的内存模块容量 |
4GB |
| 无错误检测和更正 |
Y |
| 內存插槽数量 |
2 |
| 最大内部存储 |
4 GB |
内置输入/输出系统
| 前面板音频接头 |
Y |
| 机箱防盗接口 |
Y |
| COM连接器数量 |
1 |
| CPU风扇接口 |
Y |
| 周边（莫仕）电 源连接器（4针） |
1 |
| TPM（可信任安全平台模组）接口 |
Y |
| S / PDIF输入接口 |
Y |
| 风扇电源接头 |
Y |
| ATX电源接头 |
Y |
| 并行ATA连接器 |
2 |
| S/PDIF输出端口 |
Y |
| USB 2.0接口 |
1 |
| 机箱风扇接头数量 |
1 |
背板输出端口
| COM接口数量 |
1 |
| eSATA端口数量 |
2 |
| VGA（D-SUB）端口数量 |
1 |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
3 |
| PS/2连接埠数量 |
1 |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
AMI |
另外
| 主板晶片 |
Intel NM10 Express |
| 以太网路(RJ-45)连接接口数量 |
1 |

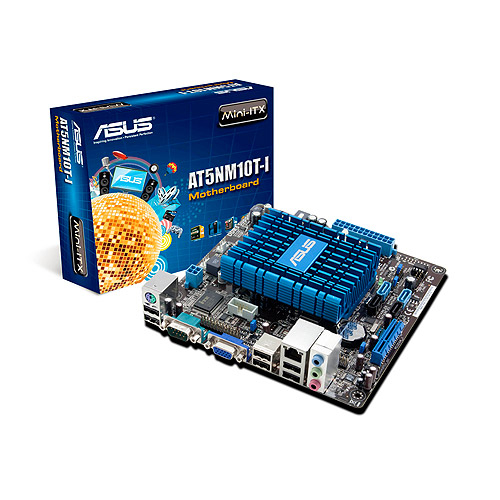

AT5NM10T-I - Intel Atom D525, NM10, ITX, 2 x DIMM, Max. 4GB, DDR3 800 Hz, 2 x SATA 3Gb/s, 8 x USB 2.0, 17 cm x 17 cm
<b>Intel® ATOM™ Processor</b>
[Intel Atom] The Intel® Atom™ processor is Intel's smallest processor, built with the world's smallest transistors and manufactured on Intel's industry-leading 45nm Hi-k Metal Gate technology. The Intel Atom processor was purpose-built for simple, affordable, netbooks and nettops.
<b>High Definition Audio</b>
[High Definition Audio] Enjoy high-end sound system on your PC! The onboard HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
<b>CrashFree BIOS 3</b>
ASUS CrashFree BIOS 3 is an auto-recovery tool that allows you to restore a corrupted BIOS file using the bundled support DVD or USB disk that contains the latest BIOS file.
<b>EZ Flash2</b>
ASUS EZ Flash 2 is a utility that allows you to update the BIOS without using an OS-based utility.
<b>SATA 3Gb/s</b>
Serial ATA3.0Gb/s is the next generation ATA specification that provides scalable performance foroday and tomorrow. With up to 300MB/s data transfer rate, Serial ATA II is faster than current Parallel ATA, while providing 100% software compatibility.
<b>MyLogo2</b>
This feature allows you to convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
<b>Gigabit Lan</b>
The onboard LAN controller is a highly integrated Gb LAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.
<b>GreenASUS</b>
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
