背板输出端口
| DVI-D接口数量 |
1 |
| WiFi-AP天线端子 |
2 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| HDMI端口数量 |
1 |
| eSATA端口数量 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| 耳机输出端口 |
1 |
| PS/2连接埠数量 |
1 |
内存参数
| 无错误检测和更正 |
Y |
| 內存插槽数量 |
2 |
| 最大内部存储 |
8 GB |
内置输入/输出系统
| ATX电源接头 |
Y |
| S/PDIF输出端口 |
Y |
| USB 2.0接口 |
2 |
| 前面板音频接头 |
Y |
| EATX电源接头数量 |
1 |
| 机箱防盗接口 |
Y |
| CPU风扇接口 |
Y |
| SATA III连接器数量 |
5 |
| USB 3.0（第 1代3.1）连接器 |
1 |
| 机箱风扇接头数量 |
1 |
基本輸出輸入系統/BIOS
| ACPI的版本 |
2.0a |
| BIOS内存大小 |
32 MB |
| 基本输入输出系统类型 |
AMI |
另外
| 图形适配器 |
Radeon HD 6310 |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 主板晶片 |
AMD Hudson M1 |

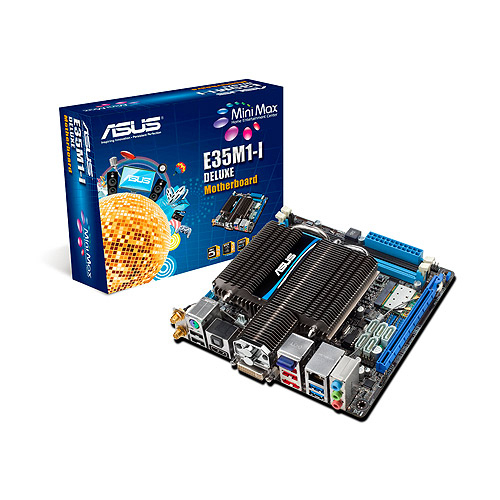

E35M1-I DELUXE - APU E-350 Dual-Core 1.6GHz, AMD FCH A50 (Hudson M1), 2 x DIMM Max. 8 GB DDR3 1066/800 Non-ECC, 1 x PCIe 2.0 x16, AMD Radeon HD 6310, 5 xSATA 6.0 Gb/s, Gigabit LAN, ALC892 8-Ch., WLAN 802.11n, Mini ITX
<b>Integrated AMD Dual-Core Processor E-350 with AMD Radeon™ HD 6310 Graphics</b>
This motherboard supports integrated AMD Dual-Core Processor E-350 with AMD Radeon™ HD 6310 Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features single-channel DDR3 1066 memory support and accelerates data transfer rate up to 2.5GT/s.
<b>AMD® FCH A50 (Hudson M1)</b>
AMD® FCH A50 (Hudson M1) is designed to support up to 2.5GT/s interface speed and PCI Express 2.0 x 16 (at x4 speed) graphics. It supports 6 x SATA6Gb/s ports and 14 x USB 2.0 Ports.
<b>Complete USB 3.0 Solution</b>
ASUS facilitates strategic USB 3.0 accessibility for both the front and rear panel - 4 USB 3.0 ports in total. Experience the latest plug & play connectivity at speeds up to 10 times faster than USB 2.0. The E35M1-I DELUXE affords greater convenience to high speed connectivity.
<b>Native SATA 6Gb/s Support</b>
The AMD Hudson M1 Chipset natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.
<b>AI Suite II</b>
One-stop Access to Innovative ASUS Features
With its user-friendly interface, ASUS AI Suite II consolidates all exclusive ASUS features into one simple-to-use package. It allows users to supervise overclocking, energy management, fan speed, voltage and sensor readings, even interact with mobile devices via Bluetooth. This all-in-one software offers diverse and easy to use functions, with no need to switch back and forth between different utilities.
<b>MemOK!</b>
Any Memory is A-OK!
MemOK! quickly ensures memory boot compatibility. This remarkable memory rescue tool requires a mere push of a button to patch memory issues. MemOK! determines failsafe settings and dramatically improves system boot success. Get your system up and running in no time!
<b>Fanless Design Heatsink</b>
Effective Fanless Heat Dissipation at 0dB
The passive cooling solution provided by the large yet low profiled dual heat-pipe heatsink covering the CPU and the graphic processor, plus the extra 2oz of copper, allows the powerful yet compact system to be cooled within limited spacing. With the additional support of fan headers, users are able to build compact yet flexible systems like never.
<b>ASUS Q-Fan</b>
ASUS Q-Fan technology intelligently adjusts CPU fan speed according to system loading to ensure quiet, cool and efficient operation.
<b>EFI BIOS (EZ Mode)</b>
Flexible, Easy BIOS Interface
ASUS brand new EFI BIOS offers a user-friendly interface that goes beyond traditional keyboard only BIOS, to enable more flexible and convenient mouse controls. Users can easily navigate the new EFI BIOS with the same smoothness as their operating system. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system settings.
<b>ASUS Anti-Surge Protection</b>
This special design prevents expensive devices and the motherboard from damage caused by power surges from switching power supply(PSU).
<b>S/PDIF-out on Back I/O Port</b>
This motherboard provides convenient connectivity to external home theater audio systems via optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.
<b>Wireless on board</b>
WLAN 802.11n gives you faster surfing speeds and higher throughput when compared to other wireless standards. Its wider range of coverage ensures better signal transmission and reception. Bluetooth gives you an easier way to connect devices with bluetooth connection. Say goodbye to cable mess!
<b>DTS</b>
DTS Surround Sensation UltraPC
Delivers exceptional 5.1 surround experience through the most common PC audio setups - your existing stereo speakers or headphones. With these technologies, you may experience a better home-theater audio with ease.
<b>GreenASUS</b>
The motherboard is European Union´s Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.
