性能
| 主板元件 |
Micro ATX |
| 主板芯片组系列 |
Intel |
| 音频系统 |
Realtek ALC662 |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
1333 MHz |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存电压 |
1.35, 1.5 V |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
16 GB |
内置输入/输出系统
| USB 2.0接口 |
2 |
| SATA II连接器数量 |
2 |
| 前面板音频接头 |
Y |
| 串行端口接头连接器 |
1 |
处理器的特殊功能
| 执行禁止位 |
Y |
| 英特尔®中小企业通锐软件(SBA) |
N |
| 英特尔®稳定映像平台计划 (SIPP) |
N |
| 英特尔®快速同步视频技术 |
Y |
| 英特尔® 内线™ |
N |
| 英特尔®64 |
Y |
| 英特尔® 防盗技术 |
N |
| 英特尔®身份保护技术 |
N |
| 英特尔®超线程技术 |
N |
| 英特尔®Turbo Boost技术 |
N |
| 英特尔® FDI技术 |
N |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔®无线显示(WiDi)技术 |
N |
技术细节
| 英特尔®虚拟化技术（VT -x） |
Y |
| 英特尔® 快速存储技术企业版（Intel® RSTe） |
N |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
N |
扩展槽
| PCI Express x1（Gen 2.x）插槽 |
2 |
| PCI Express X16（Gen 2.x）插槽 |
1 |
背板输出端口
| PS/2连接埠数量 |
2 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
1 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
其他功能
| 其他功能 |
Supports Solid capacitor\nSupports BIOS-Flasher\nSupports Charger Booster |
另外
| InTru™3D技术 |
N |
| 以太网连接器 |
Y |
| 英特尔®AES新指令 |
N |
| 以太网路(RJ-45)连接接口数量 |
1 |

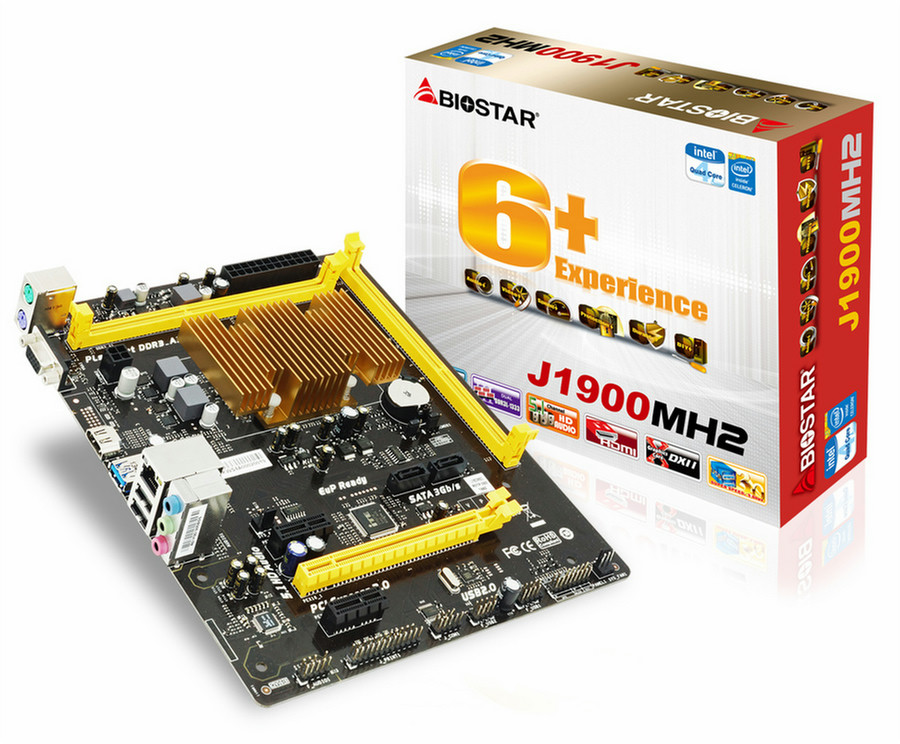

Intel Celeron J1900, 2 x DIMM, 16GB DDR3, SATA 2 x 2, 1 x USB 3.0, 4 x USB 2.0, 1 x RJ-45, 1 x VGA, Micro ATX, 1 x PCI-E x16 2.0 Slot(x1 speed), 2 x PCI-E x1 2.0 Slot
HD Audio
Provides high quality sound with minimal loss of audio fidelity.
HDMI 3D Visual
The HDMI 3D Visual provides a level of interoperability for devices designed to deliver 3D content over the HDMI connection. The latest HDMI Specification adds key enhancements to support the market requirements for bringing broadcast 3D content into the home featuring key enhancements for 3D applications including the addition of mandatory 3D formats for broadcast content.
DX11
Direct3D 11 enables Direct3D 10 APIs and Direct3D 11 APIs to use one underlying rendering device. And it allows developers to achieve a high speed, fully conformant software rasterizer.
SmartSpeedLAN
SmartSpeedLAN is a free software application which monitors and manages your PC's network behavior. With user-friendly GUI, it allows you to select and prioritize different types of network traffic, including gaming, media streaming, communications or web surfing.You can also set any specific applications, choosing to prioritize or block accordingly. SmartSpeedLAN can feature automatic management options that use adaptive networking intelligence to ensure that you are getting the best online experience possible.
Charger Booster
Charger booster is the best and efficient charger solution for apple devices such as iPad, iPhone. Basically, Charger booster Technology is able to boost the charging time to be more efficiency and faster once any apple goods connecting to our Motherboard. With charger booster technology, you are able to charge your apple devices up to 42 % faster.
Moistureproof PCB
The popularity of PC usage and working environment is getting deteriorating and moist(rural, coastal, etc.). The PCB will be oxidizing easily by damp or absorbed moisture, and ionic migration or CAF (Conductive Anodic Filament) will be generated. Moisture-proof PCB meets high density and high reliability requirements for moisture proof.
Low RdsOn P-Pak MOS
Low resistance design can significantly reduce the current out of energy loss.Low temperature, small size, excellent thermal conductivity.
ESD Protection
ESD (Electrostatic Discharge) is the major factor to destroy PC by electrical overstress(EOS) condition, ESD occurred by PC users when touch any devices connect to PC, which may result in damage to motherboard or parts .ESD protection is designed to protect the motherboard and equipment from damage by EOS
USB Polyswitch
On board dedicated power fuse to help prevent USB port failure. It prevents USB Port overcurrent and safegurand your system and device lifespan.
BIOS Virus Protection
When enabled, the BIOS will protect the boot sector and partition table by halting the system and flashing a warning message whether there's an attempt to write to these areas.
OC / OV / OH Protection
All BIOSTAR special circuit design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect your system. Over current protection, avoid motherboard from damage when doing overclock or an unusual current import. Over heat protection, avoid motherboard & CPU from burning when exceeding the temperature limitation.
BullGuard Internet Security (90 days FREE trial)
BullGuard Internet Security comes with the broadest line-up of internet security features on the market, including: a cutting-edge dual Antivirus engine, Online Backup for your precious files, PC Tune Up to speed up your system, a Game Mode for a seamless gaming experience, Parental Control, Firewall, Safe Browsing and many more. Make the most of your digital life with Bullguard!
UEFI BIOS
Unified Extensible Firmware Interface (UEFI) is a brand new framework that provides a revolutionary interface. It is a modern clear and easy-to-use graphical user interface. The UEFI comes with a colorful easy-understand icons leads users into the setup layer directly.
Header Zone
Users can easily assemble their own computer, a simple-swap data discs and other accessories.
BIO-Remote 2
BIO-Remote2 Technology is featuring users a better Home Theater environment. Users who own either Android mobile or Apple goods are able to access and control your PC remotely; At this moment, you’re smart device became a intelligent and functional remote controller; more than that, BIO-Remote2 also includes both function of mouse pad and power point presentation mode.
Intel Celeron J1900 Quad Core processor
The Intel Celeron J1900(2M Cache, up to 2.42 GHz) is a quad-core processor. Although both parts are clocked the same, at 2 GHz, the J1900 also incorporates Burst Technology, that can boost operating frequency up to 2.41 GHz. The maximum GPU frequency was also increased on the J1900 to 854 MHz, while the base GPU speed stayed at 688 MHz. The rest of the specs have not changed.It supports DDR3L-1333 memory and fit into 10 Watt thermal envelope.
